Removal [11/2016 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.

REMOVE V-RIBBED BELT
Refer to REMOVAL [11/2016 - ]

REMOVE CRANKSHAFT PULLEY

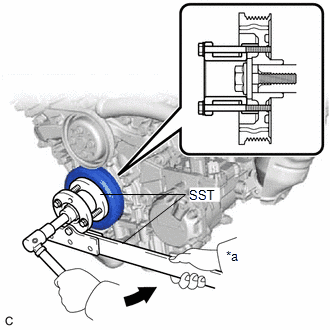

Using SST to hold the crankshaft pulley, loosen the crankshaft pulley set bolt. Further loosen the crankshaft pulley set bolt until 2 or 3 threads remain screwed into the crankshaft.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Hold
	Turn

SST: 09213-70011
1. 09213-70020
SST: 09330-00021

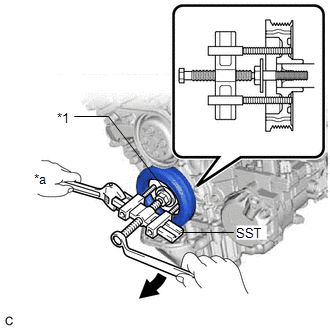

Using SST, remove the crankshaft pulley set bolt and crankshaft pulley.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Crankshaft Pulley Set Bolt
*a	Hold
	Turn

SST: 09950-50013
1. 09951-05010
2. 09952-05010
3. 09953-05020
4. 09954-05021

REMOVE TIMING CHAIN CASE OIL SEAL

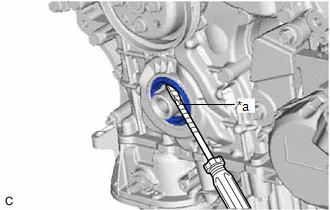

Using a screwdriver with its tip wrapped with protective tape, pry out the timing chain case oil seal.

*a	Protective Tape

NOTE:

After removal, check the crankshaft for damage. If it is damaged, smooth the surface with a 400-grit sandpaper.
