Installation [11/2016 - ]: Procedure

HINT:

When reusing the V-ribbed belt, check the ribs and back of the V-ribbed belt for wear and cracks. If wear or a crack that reaches the core (at more than 1 point) is found, replace the V-ribbed belt.

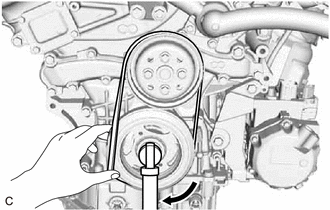

1. Partially install the V-ribbed belt to the crankshaft pulley as shown in the illustration.
   Fig 1: Drive Belt Routing Diagram

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE:

   • Make sure the V-ribbed belt is securely mounted on the water pump pulley.

   • Do not allow slack in the V-ribbed belt.

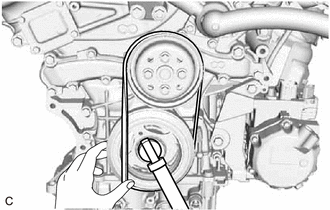

2. While holding the crankshaft pulley side V-ribbed belt, gradually rotate the crankshaft pulley clockwise to install the V-ribbed belt.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   WARNING:

   Do not hold any other parts of the V-ribbed belt, or your fingers may get caught between the V-ribbed belt and crankshaft pulley as they are rotated.

   NOTE:

   • Guide the V-ribbed belt into the grooves of the water pump pulley as the crankshaft pulley is rotated.

   • Make sure the V-ribbed belt is not inside out.
3. Rotate the crankshaft pulley until the V-ribbed belt is fully mounted on the water pump pulley.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Correct
   *b	Incorrect

4. Check that the V-ribbed belt is securely mounted on the crankshaft pulley and water pump pulley.
   NOTE:

   Make sure the ribs of the V-ribbed belt are not cracked.

5. Start the engine and check that the V-ribbed belt turns smoothly without any noise.

See step  79

Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)
