Removal [11/2016 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.
- REMOVE INTAKE AIR SURGE TANK ASSEMBLY
Refer to REMOVAL [11/2016 - ]
- REMOVE VVT SENSOR (for Intake Side of Bank 1)

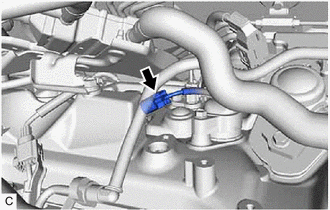

- Disconnect the VVT sensor connector.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Remove the bolt and VVT sensor from the cylinder head cover sub-assembly.
NOTE:
If the VVT sensor has been struck or dropped, replace it.
- REMOVE VVT SENSOR (for Exhaust Side of Bank 1)
- Disconnect the No. 3 ignition coil assembly connector.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disconnect the VVT sensor connector.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Remove the bolt and VVT sensor from the cylinder head cover sub-assembly.
NOTE:
If the VVT sensor has been struck or dropped, replace it.
- REMOVE VVT SENSOR (for Intake Side of Bank 2)
- Disconnect the VVT sensor connector.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Remove the bolt and VVT sensor from the cylinder head cover sub-assembly LH.
NOTE:
If the VVT sensor has been struck or dropped, replace it.
- REMOVE VVT SENSOR (for Exhaust Side of Bank 2)
- Disconnect the VVT sensor connector.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Remove the bolt and VVT sensor from the cylinder head cover sub-assembly LH.
NOTE:
If the VVT sensor has been struck or dropped, replace it.
