Installation [11/2016 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL AIR FUEL RATIO SENSOR (for Bank 1)

    HINT:

    Perform "Inspection After Repair" after replacing the air fuel ratio sensor.

    Refer to INITIALIZATION [11/2016 - ]

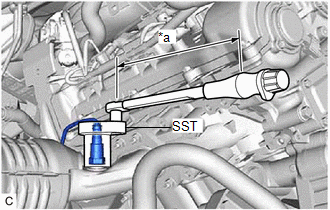

    1. Using SST, install the air fuel ratio sensor to the exhaust manifold (TWC: Front Catalyst).
      GTY704569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Torque Wrench Fulcrum Length
      • SST: 09224-00012

      Specified tightening torque

      Torque: 44 N*m (449 kgf*cm, 32 ft.*lbf)

      NOTE:

      If the air fuel ratio sensor has been struck or dropped, replace it.

      HINT:

      • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

        Refer to PRECAUTION [11/2016 - ]

      • When using SST (fulcrum length of 30 mm (1.18 in.)) + torque wrench (fulcrum length of 180 mm (7.09 in.)):

        37.7 N*m (384 kgf*cm, 28 ft.*lbf)

    2. Engage the 3 wire harness clamps.
    3. Connect the air fuel ratio sensor connector.
  2. INSTALL NO. 2 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 83

  3. INSTALL NO. 1 EGR PIPE

    Refer to INSTALLATION [11/2016 - ]

  4. INSTALL AIR FUEL RATIO SENSOR (for Bank 2)

    HINT:

    Perform "Inspection After Repair" after replacing the air fuel ratio sensor.

    Refer to INITIALIZATION [11/2016 - ]

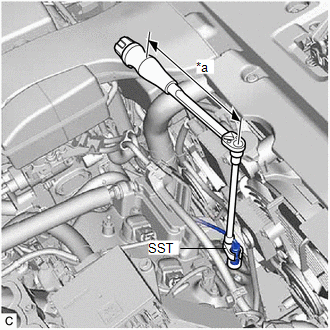

    1. Using SST, install the air fuel ratio sensor to the exhaust manifold assembly LH (TWC: Front Catalyst).
      GTY721704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Torque Wrench Fulcrum Length
      • SST: 09224-00012

      Specified tightening torque

      Torque: 44 N*m (449 kgf*cm, 32 ft.*lbf)

      NOTE:

      If the air fuel ratio sensor has been struck or dropped, replace it.

      HINT:

      • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

        Refer to PRECAUTION [11/2016 - ]

      • When using SST (fulcrum length of 30 mm (1.18 in.)) + torque wrench (fulcrum length of 180 mm (7.09 in.)):

        37.7 N*m (384 kgf*cm, 28 ft.*lbf)

    2. Engage the 2 wire harness clamps.
    3. Connect the air fuel ratio sensor connector.
  5. INSTALL NO. 1 ENGINE COVER
    1. Install the No. 1 engine cover to the cylinder head cover sub-assembly LH.
    2. Engage the clamp to connect the No. 4 engine wire to the wire harness bracket.
  6. INSTALL V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 74

  7. INSPECT FOR EXHAUST GAS LEAK

    Refer to PROCEDURE - Step 10

  8. PERFORM INITIALIZATION
    1. Perform "Inspection After Repair" after replacing an air fuel ratio sensor.

      Refer to INITIALIZATION [11/2016 - ]
