Parts Location [12/2013 - 11/2015]: Illustration

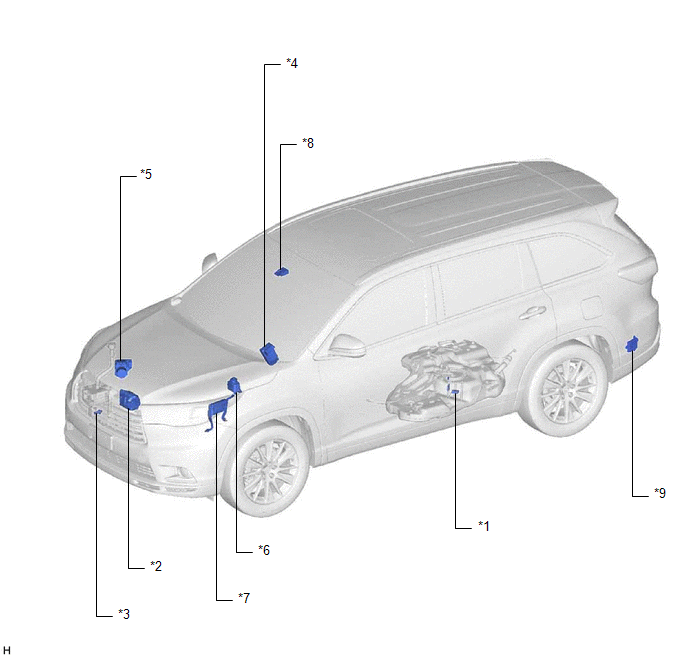

| *1 | FUEL SENDER GAUGE ASSEMBLY | *2 | GENERATOR ASSEMBLY |
| *3 | LEVEL WARNING SWITCH ASSEMBLY | *4 | POWER STEERING ECU ASSEMBLY |
| *5 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU |
*6 | BRAKE MASTER CYLINDER RESERVOIR SUB-ASSEMBLY - BRAKE FLUID LEVEL WARNING SWITCH |
| *7 | ECM | *8 | LANE DEPARTURE WARNING CAMERA (w/ Lane Departure Alert System) |
| *9 | BLIND SPOT MONITOR SENSOR LH (w/ Blind Spot Monitor System) | - | - |

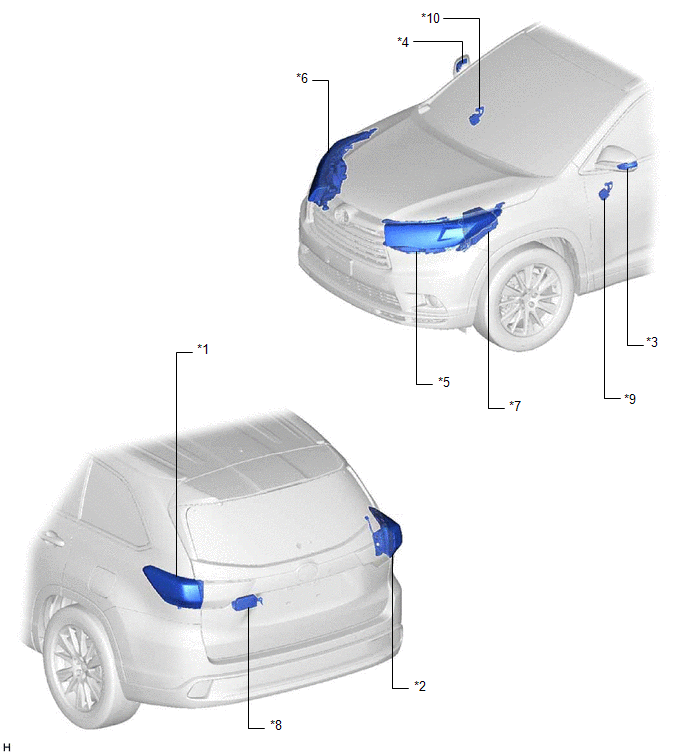

| *1 | REAR COMBINATION LIGHT ASSEMBLY LH | *2 | REAR COMBINATION LIGHT ASSEMBLY RH |
| *3 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH | *4 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
| *5 | HEADLIGHT ASSEMBLY LH | *6 | HEADLIGHT ASSEMBLY RH |
| *7 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - MPX-B NO. 1 FUSE |
*8 | MULTIPLEX NETWORK DOOR ECU (w/ Power Back Door System) |
| *9 | OUTER MIRROR CONTROL ECU ASSEMBLY LH (w/ Seat Position Memory) | *10 | OUTER MIRROR CONTROL ECU ASSEMBLY RH (w/ Seat Position Memory) |

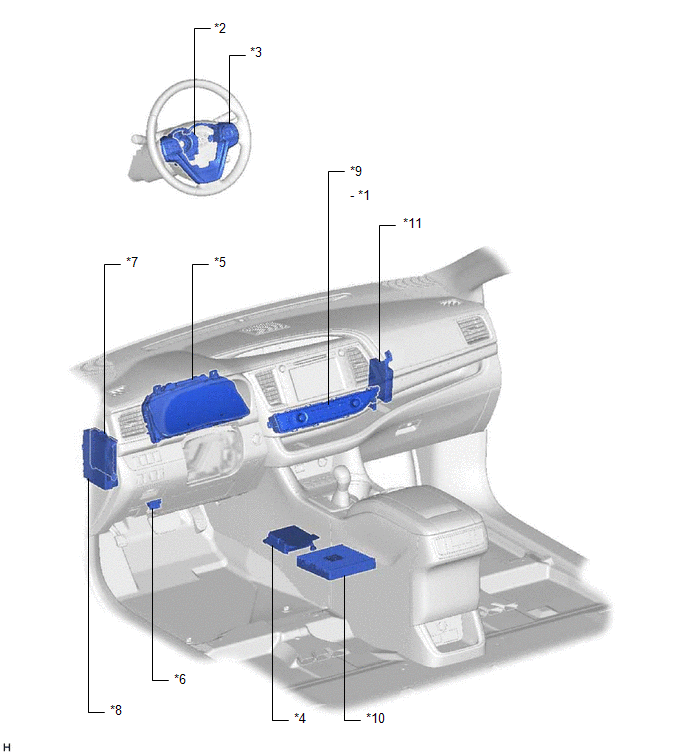

| *1 | HAZARD WARNING SIGNAL SWITCH | *2 | SPIRAL CABLE SUB-ASSEMBLY |
| *3 | STEERING PAD SWITCH ASSEMBLY | *4 | AIRBAG SENSOR ASSEMBLY |
| *5 | COMBINATION METER ASSEMBLY | *6 | DLC3 |
| *7 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *8 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - METER FUSE - HAZ FUSE |
| *9 | AIR CONDITIONING CONTROL ASSEMBLY | *10 | STEREO COMPONENT AMPLIFIER ASSEMBLY (for 12 Speakers) |
| *11 | AIR CONDITIONING AMPLIFIER ASSEMBLY | - | - |

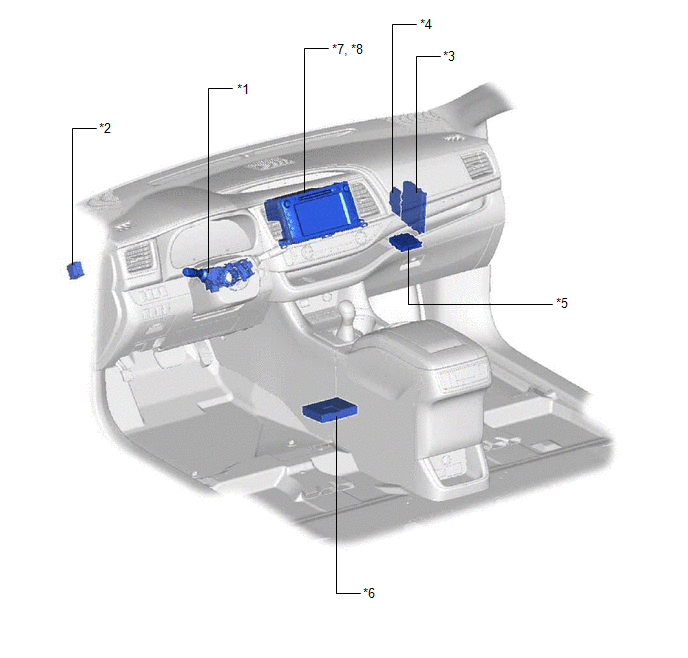

| *1 | HEADLIGHT DIMMER SWITCH ASSEMBLY | *2 | 4WD ECU ASSEMBLY (for AWD) |
| *3 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *4 | DRIVING SUPPORT ECU ASSEMBLY (w/ Pre-collision System) |
| *5 | CLEARANCE WARNING ECU ASSEMBLY (w/ Intuitive Parking Assist System) | *6 | DCM (TELEMATICS TRANSCEIVER) (w/ Manual (SOS) Switch) |
| *7 | RADIO AND DISPLAY RECEIVER ASSEMBLY (for Radio and Display Type) | *8 | NAVIGATION RECEIVER ASSEMBLY (for Navigation Receiver Type) |
