System Diagram [12/2013 - ]

  1. FRONT SEAT HEATER SYSTEM

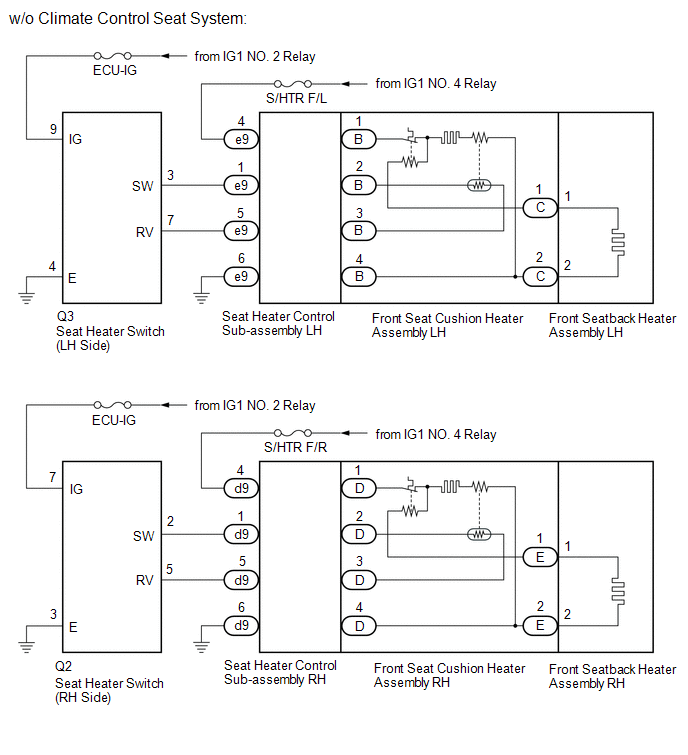

    Fig 1: Front Seat Heater System (W/O Climate Control Seat) Wiring Diagram
    GTY447911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

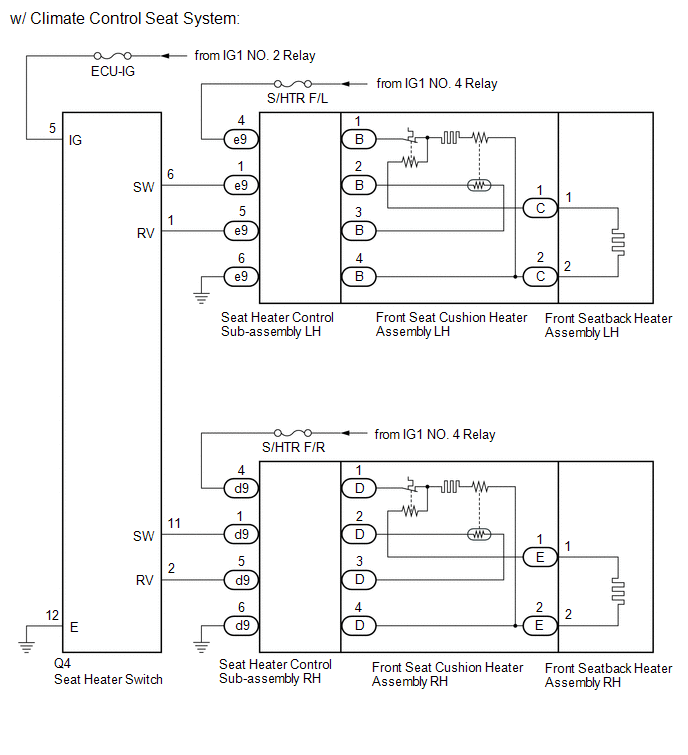

    Fig 2: Front Seat Heater System (Climate Control Seat) Wiring Diagram
    GTY451016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REAR SEAT HEATER SYSTEM (w/ Rear Seat Heater)

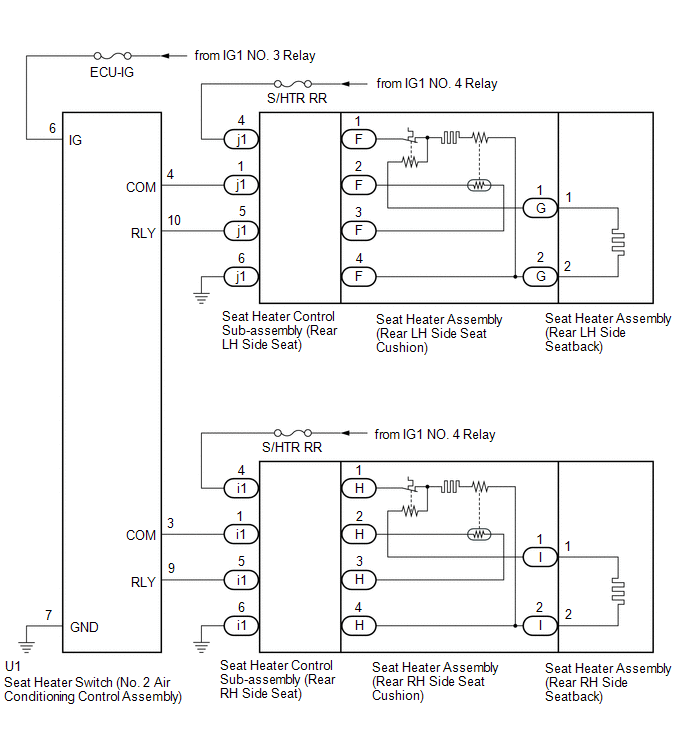

    Fig 3: Rear Seat Heater System (W/ Rear Seat Heater) Wiring Diagram
    GTY426647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
