Installation [12/2013 - ]: Procedure

  1. INSTALL REAR AXLE HUB AND BEARING ASSEMBLY (for 2WD)

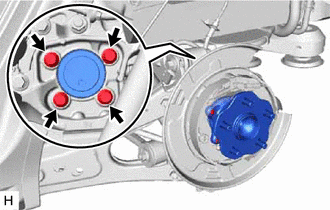

    1. Install the rear axle hub and bearing assembly to the rear axle carrier sub-assembly with the 4 bolts.

      Torque: 125 N*m (1275 kgf*cm, 92 ft.*lbf)

      GTY428428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL REAR AXLE HUB AND BEARING ASSEMBLY (for AWD)

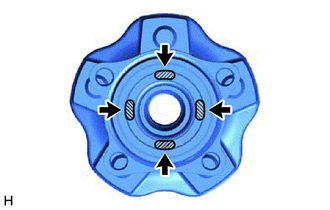

    1. Apply 0.1 to 0.3 g (0.00353 to 0.0105 oz) of Toyota Body Grease W to each of the 4 areas shown in the illustration.
      GTY603125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Toyota Body Grease W

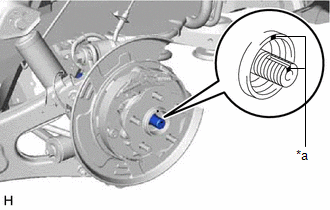

    2. Install the rear axle hub and bearing assembly to the rear drive shaft assembly.
      GTY450402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark
      NOTE:

      Align the matchmarks on the rear drive shaft assembly and rear axle hub and bearing assembly.

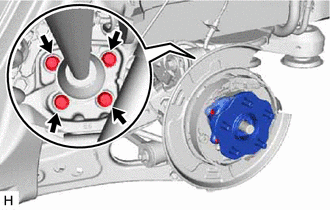

    3. Install the rear axle hub and bearing assembly to the rear axle carrier sub-assembly with the 4 bolts.

      Torque: 125 N*m (1275 kgf*cm, 92 ft.*lbf)

      GTY428430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. TEMPORARILY INSTALL REAR AXLE SHAFT NUT (for AWD)
    1. Clean the threaded parts on the rear drive shaft assembly and a new rear axle shaft nut using non-residue solvent.
      NOTE:
      • Be sure to perform this work even when using a new rear drive shaft assembly.
      • Keep the threaded parts free of oil and foreign matter.
    2. Temporarily install the rear disc with the 5 hub nuts.

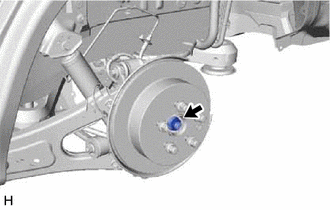

    3. Using a 30 mm socket wrench, while applying the parking brakes, temporarily install the rear axle shaft nut.

      Torque: 294 N*m (2998 kgf*cm, 217 ft.*lbf)

      NOTE:

      Stake the rear axle shaft nut after inspecting for looseness and runout in the following steps.

      GTY448279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 5 hub nuts and the rear disc.
  4. INSPECT REAR AXLE HUB BEARING LOOSENESS

    See step  5

  5. INSPECT REAR AXLE HUB RUNOUT

    See step  6

  6. INSTALL SKID CONTROL SENSOR WIRE (for 2WD)

    Refer to PROCEDURE - Step 4

  7. INSTALL REAR SPEED SENSOR (for AWD)

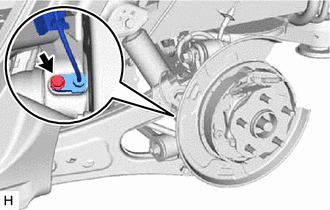

    1. Install the rear speed sensor to the rear axle carrier sub-assembly with the bolt.

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

      GTY432332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not twist the rear speed sensor when installing it.

  8. INSTALL REAR DISC

    Refer to PROCEDURE - Step 1

  9. INSTALL PARKING BRAKE SHOE ADJUSTING HOLE PLUG

    Refer to PROCEDURE - Step 2

  10. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY

    See step  9

  11. STAKE REAR AXLE SHAFT NUT (for AWD)

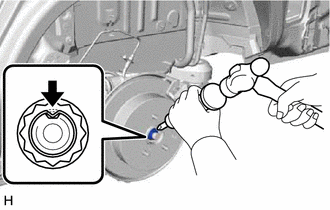

    1. Using a chisel and hammer, stake the rear axle shaft nut.
      GTY448234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL REAR SUSPENSION ARM COVER

    Refer to PROCEDURE - Step 6 , or refer to PROCEDURE - Step 6

  13. ADJUST PARKING BRAKE

    Refer to ADJUSTMENT [12/2013 - ]

  14. INSTALL REAR WHEEL

    Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)

  15. CHECK FOR SPEED SENSOR SIGNAL

    Refer to TEST MODE PROCEDURE [12/2013 - 11/2016] , or refer to TEST MODE PROCEDURE [11/2016 - ]
