System Diagram [12/2013 - ]

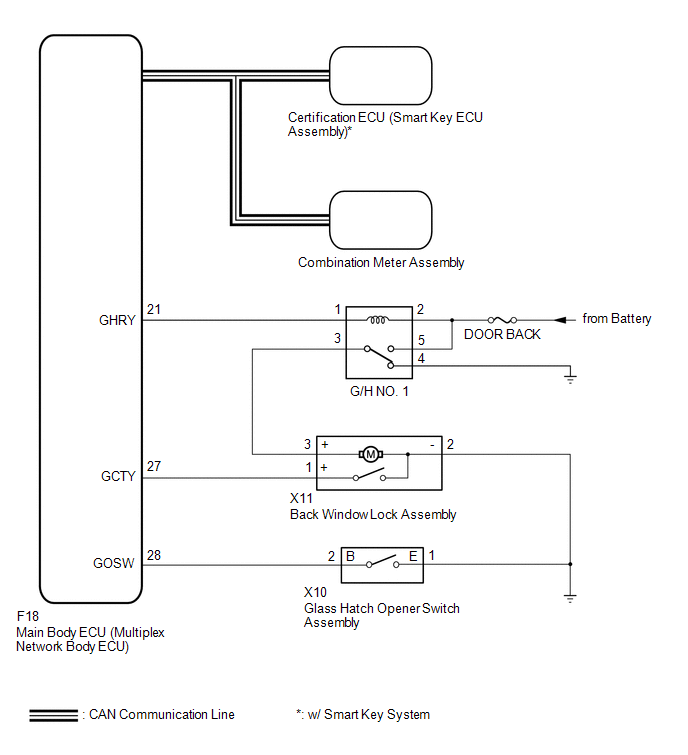

Fig 1: Glass Hatch Opener System Wiring Diagram
GTY449834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Transmitting ECU Receiving ECU Signal Communication Method
Combination Meter Assembly Main Body ECU (Multiplex Network Body ECU) Vehicle speed signal CAN
Certification ECU (Smart Key ECU Assembly)* Main Body ECU (Multiplex Network Body ECU)
  • Entry door lock/unlock signal
  • Door lock/unlock standby control signal
 CAN
  • *: w/ Smart Key System
