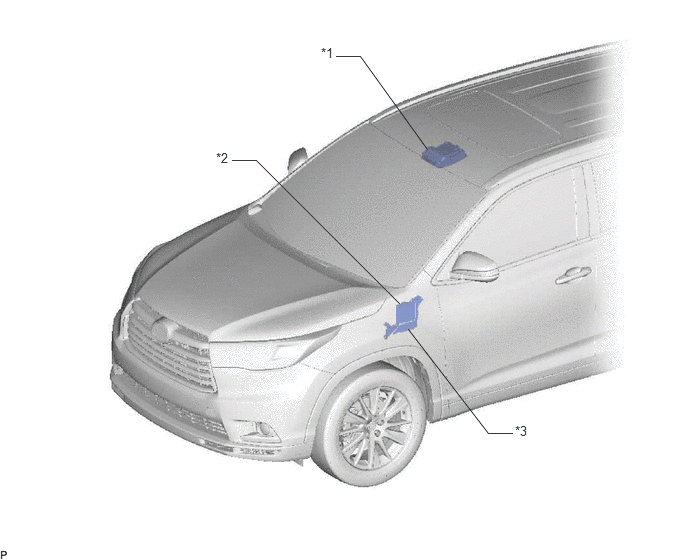

Parts Location [02/2014 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
MAP LIGHT ASSEMBLY
- GARAGE DOOR OPENER |
*2 |
MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *3 |
INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- DOME FUSE
- DOME CUT RELAY |
- |
- |
