System Diagram [11/2016 - ]

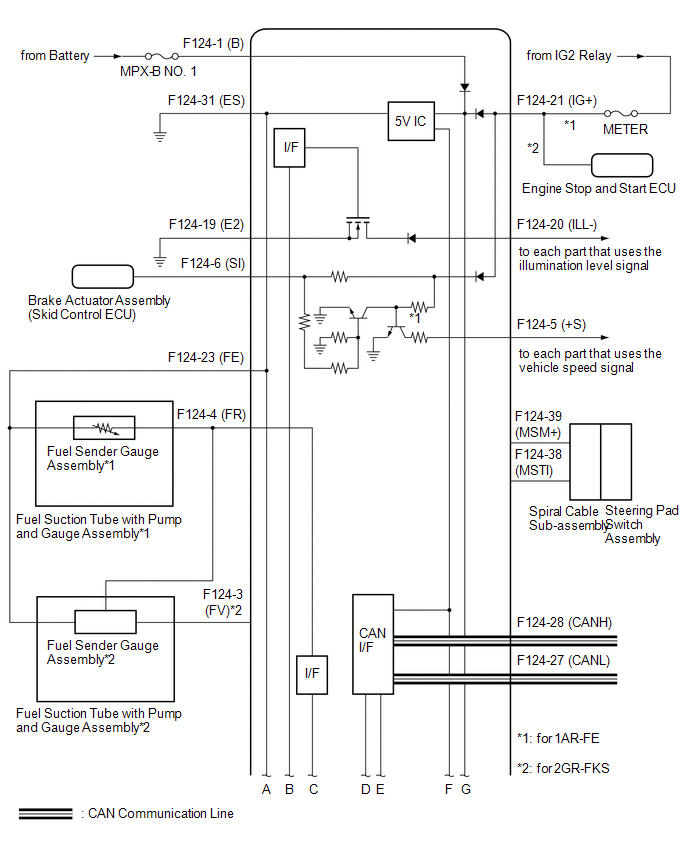

Fig 1: Meter / Gauge System Wiring Diagram (1 Of 3) (11/2016 -)
GTY710666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

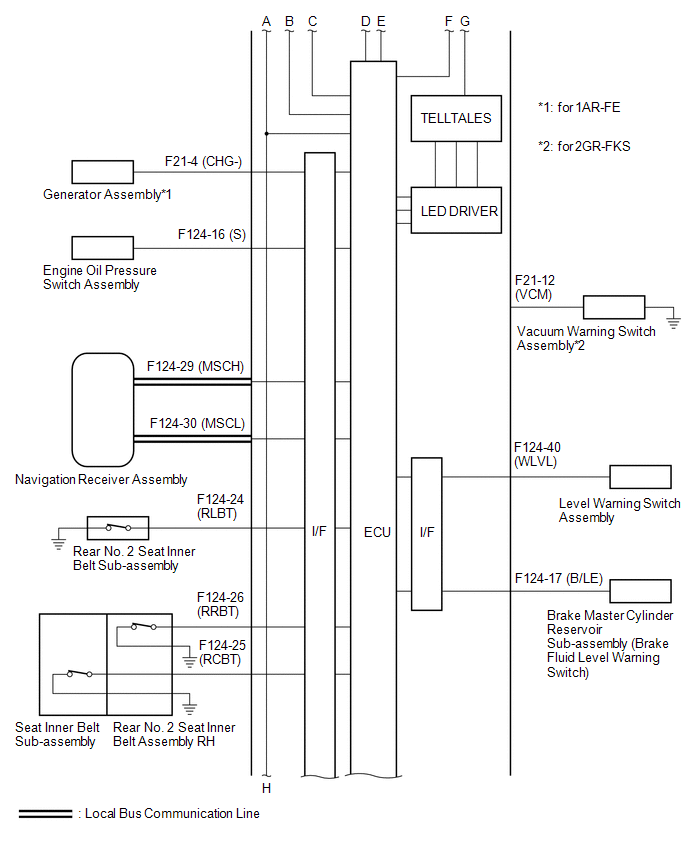

Fig 2: Meter / Gauge System Wiring Diagram (2 Of 3) (11/2016 -)
GTY722412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

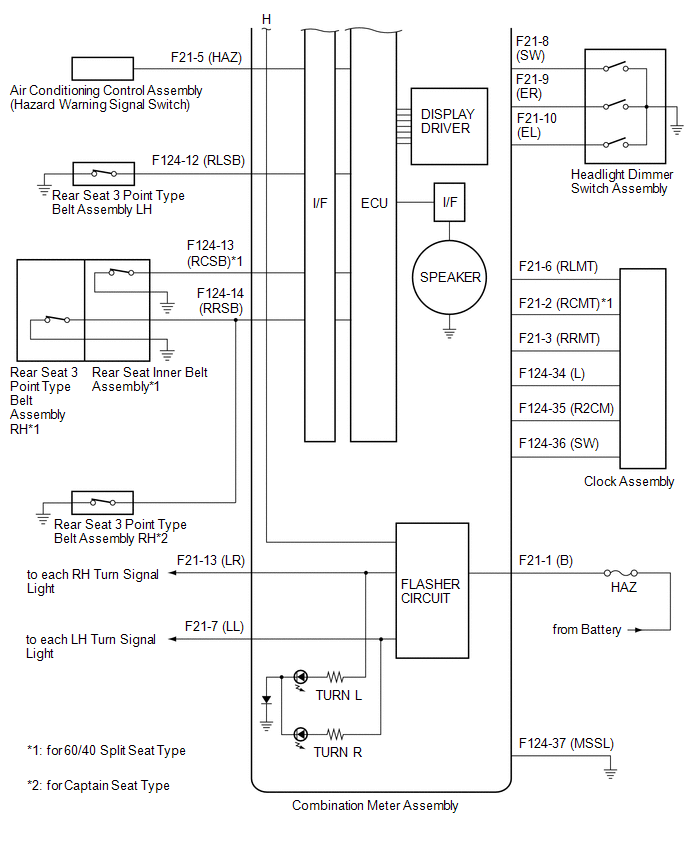

Fig 3: Meter / Gauge System Wiring Diagram (3 Of 3) (11/2016 -)
GTY732726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
