Parts Location [12/2013 - ]: Illustration

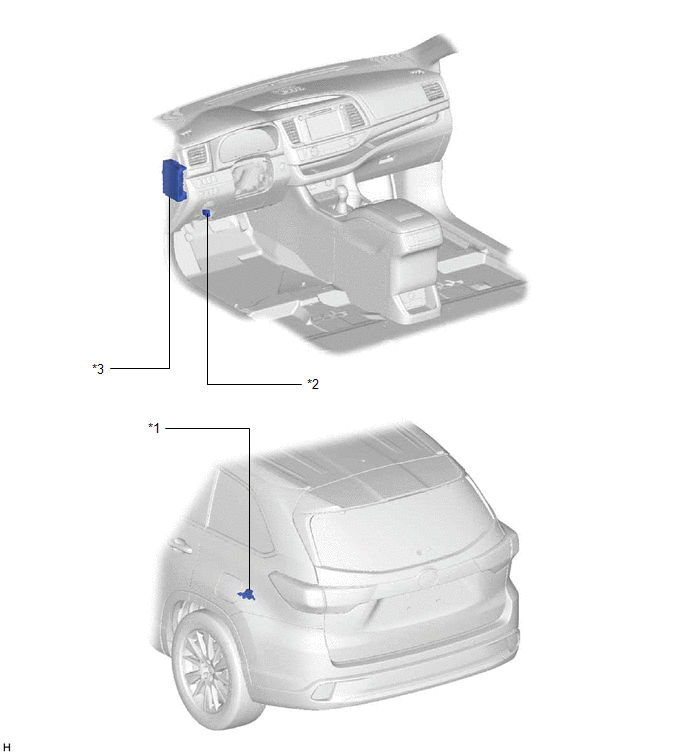

Fig 1: Fuel Lid Opener System Parts Location

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FUEL LID LOCK WITH MOTOR ASSEMBLY	*2	FUEL LID OPENER SWITCH
*3	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - DOOR BACK FUSE - FUEL LOCK RELAY	-	-
