Removal [12/2013 - ]: Procedure

  1. REMOVE ROOF HEADLINING ASSEMBLY

    Refer to REMOVAL [12/2013 - 11/2015] , or refer to REMOVAL [11/2015 - 11/2016] , or refer to REMOVAL [11/2016 - ]

  2. REMOVE AIR DUCT SEAL

    Refer to PROCEDURE - Step 8 , or refer to PROCEDURE - Step 8 , or refer to PROCEDURE - Step 8

  3. REMOVE SPOT LIGHT ASSEMBLY

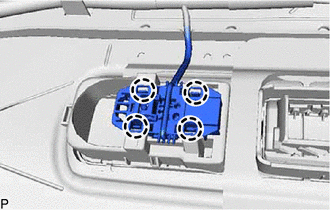

    1. Disengage the 4 claws to remove the map light sub-assembly.
      GTY437618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

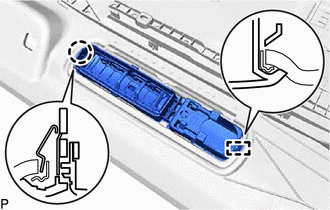

    2. Disengage the claw and guide to remove the spot light assembly.
      GTY446411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE SPOT LIGHT BULB
    1. Remove the spot light bulb from the map light sub-assembly.
  5. REMOVE MAP LIGHT SWITCH

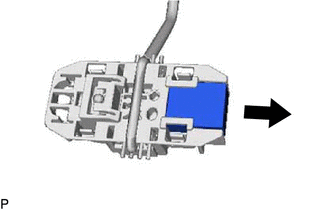

    1. Remove the map light switch from the map light sub-assembly as shown in the illustration.
      GTY453409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
