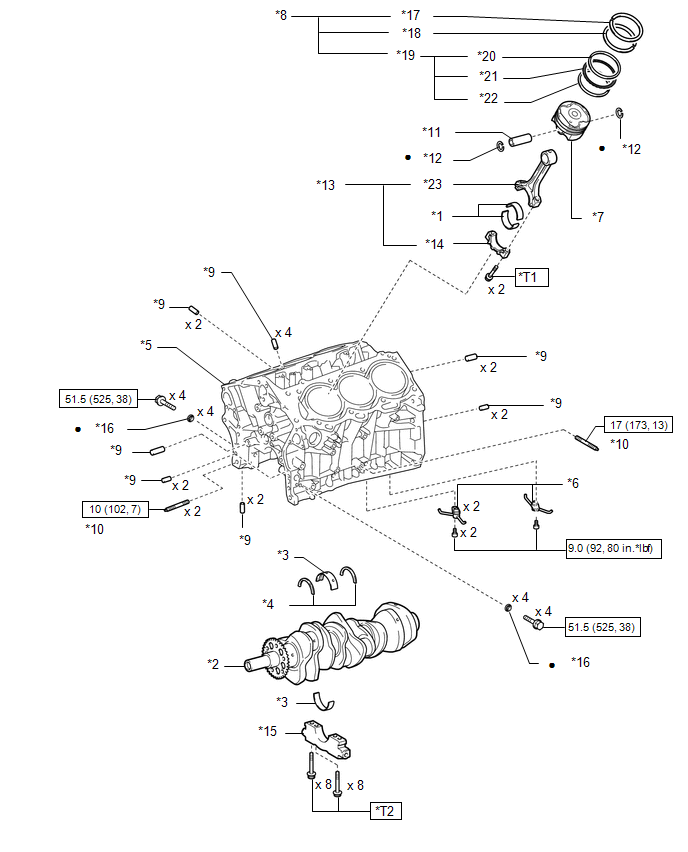

Components [12/2013 - 11/2016]: Illustration
WARNING: This page is about a different car, the 2016 Toyota Highlander, 2015 Toyota Highlander, and 2014 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Description | Callout | Description |
| *1 | CONNECTING ROD BEARING | *2 | CRANKSHAFT |
| *3 | CRANKSHAFT BEARING | *4 | CRANKSHAFT THRUST WASHER SET |
| *5 | CYLINDER BLOCK SUB-ASSEMBLY | *6 | NO. 1 OIL NOZZLE SUB-ASSEMBLY |
| *7 | PISTON | *8 | PISTON RING SET |
| *9 | STRAIGHT PIN | *10 | STUD BOLT |
| *11 | PISTON PIN | *12 | PISTON PIN HOLE SNAP RING |
| *13 | CONNECTING ROD SUB-ASSEMBLY | *14 | CONNECTING ROD CAP |
| *15 | CRANKSHAFT BEARING CAP | *16 | SEAL WASHER |
| *17 | NO. 1 COMPRESSION RING | *18 | NO. 2 COMPRESSION RING |
| *19 | OIL RING | *20 | UPPER SIDE RAIL |
| *21 | OIL RING EXPANDER | *22 | LOWER SIDE RAIL |
| *23 | CONNECTING ROD | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| *T1 | 1st: 25 (255, 18) 2nd: Turn 90° |
*T2 | 1st: 61 (622, 45) 2nd: Turn 90° |
