Removal [12/2013 - 11/2016]: Procedure

  1. REMOVE INNER REAR VIEW MIRROR ASSEMBLY (w/o EC Mirror)
    1. Disengage the 2 claws and disconnect the inner mirror base cover.
      GTY426357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull the lock lever in the direction indicated by the arrow (1) in the illustration, and slide the inner rear view mirror assembly in the direction indicated by the arrow (2) to remove it.
      GTY438059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Lock Lever
  2. REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER (w/ EC Mirror)
    1. Disengage the 2 guides and slide the inner rear view mirror stay holder cover as shown in the illustration.
      GTY426352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws and remove the inner rear view mirror stay holder cover as shown in the illustration.
      GTY450953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE INNER REAR VIEW MIRROR ASSEMBLY (w/ EC Mirror)

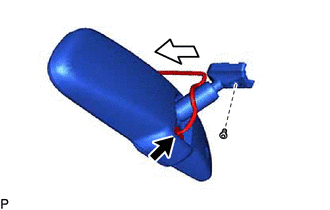

    1. Disconnect the connector.
      GTY426359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a T20 "TORX" socket wrench, remove the screw.
    3. Slide the inner rear view mirror assembly as shown in the illustration to remove it.
