Components [12/2013 - ]: Illustration

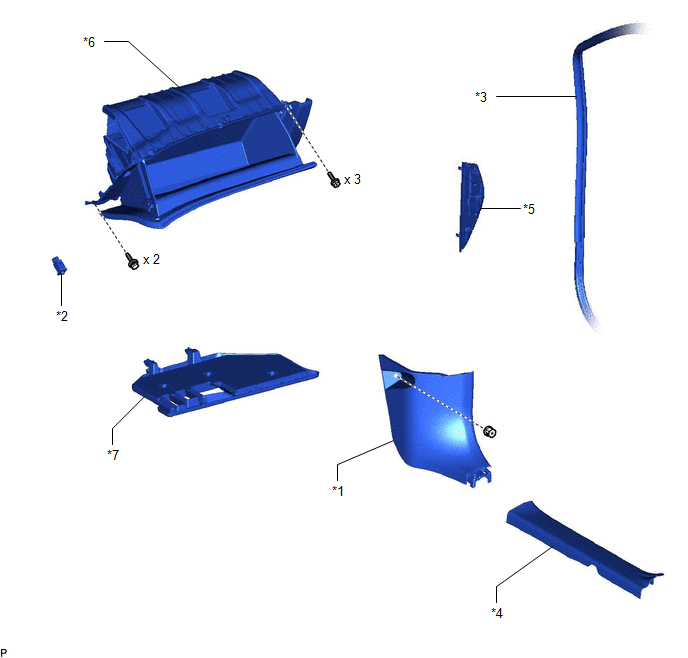

Fig 1: Power Back Door Main Switch Replacement Components
GTY438522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 COWL SIDE TRIM SUB-ASSEMBLY RH *2 DOOR CONTROL SWITCH
*3 FRONT DOOR OPENING TRIM WEATHERSTRIP RH *4 FRONT DOOR SCUFF PLATE RH
*5 INSTRUMENT PANEL FINISH PANEL END RH *6 LOWER INSTRUMENT PANEL SUB-ASSEMBLY
*7 NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY - -
