Home >> Toyota >> 2017 >> Highlander LE Plus, FWD >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> (Door / Hatch) (Service Information) (Except Hybrid) >> Power Back Door Closer Switch >> Removal [12/2013 - ] >> Procedure

Removal [12/2013 - ]: Procedure

  1. REMOVE BACK WINDOW UPPER TRIM PANEL

    See step  1 , or see step  1

  2. REMOVE BACK DOOR TRIM COVER LH

    See step  2 , or see step  2

  3. REMOVE BACK DOOR TRIM COVER RH

    HINT:

    Use the same procedure as for the LH side.

  4. REMOVE BACK DOOR LOCK COVER (for Glass Hatch Type)

    See step  4 , or see step  4

  5. REMOVE NO. 2 BACK DOOR SERVICE HOLE COVER

    See step  5 , or see step  5

  6. REMOVE NO. 1 BACK DOOR SERVICE HOLE COVER

    See step  6 , or see step  6

  7. REMOVE BACK DOOR TRIM PANEL ASSEMBLY

    See step  7 , or see step  7

  8. REMOVE BACK DOOR CONTROL SWITCH
    1. Disconnect the connector.

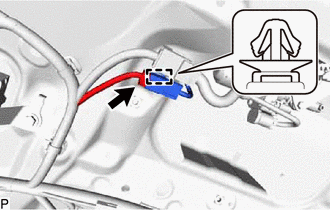

      GTY435532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.
    3. Disengage the 4 claws and remove the back door control switch.

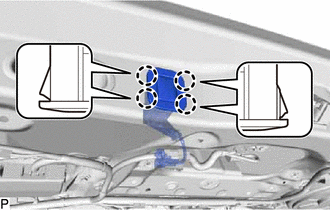

      GTY435534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
