Components [12/2013 - 11/2015]: Illustration

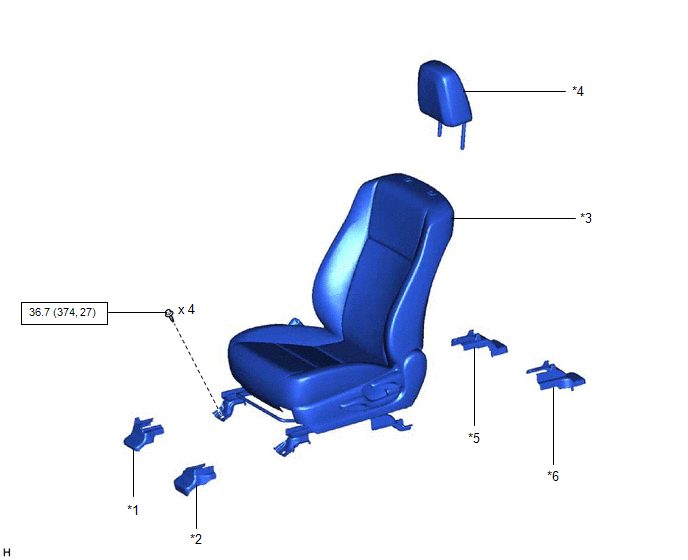

Fig 1: Front Seat Assembly (For Manual Seat) Replacement Components With Torque Specifications (1 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT INNER SEAT TRACK BRACKET COVER	*2	FRONT OUTER SEAT TRACK BRACKET COVER
*3	FRONT SEAT ASSEMBLY	*4	FRONT SEAT HEADREST ASSEMBLY
*5	INNER SEAT TRACK BRACKET COVER	*6	SEAT TRACK COVER
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

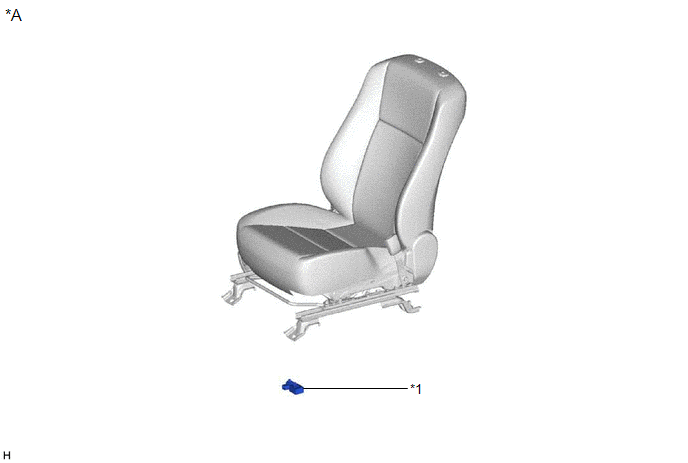

Fig 1: Front Seat Assembly (For Manual Seat) Replacement Components (2 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Front Passenger Side	-	-
*1	OCCUPANT DETECTION ECU	-	-

Fig 1: Front Seat Assembly (For Manual Seat) Replacement Components (3 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Seat Heater System	-	-
*1	SEAT HEATER CONTROL SUB-ASSEMBLY	-	-

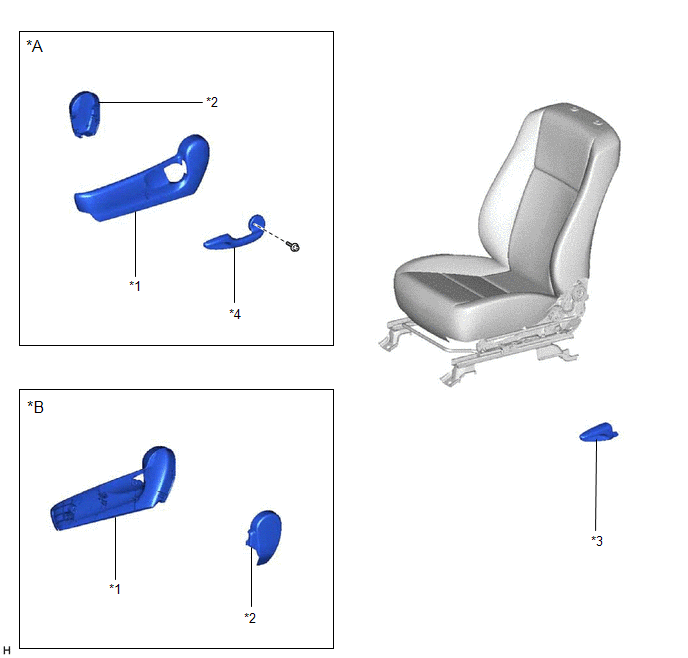

Fig 1: Front Seat Assembly (For Manual Seat) Replacement Components (4 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Driver Side	*B	for Front Passenger Side
*1	FRONT SEAT CUSHION SHIELD	*2	FRONT SEAT INNER CUSHION SHIELD
*3	RECLINING ADJUSTER RELEASE HANDLE	*4	VERTICAL ADJUSTING HANDLE

Fig 1: Front Seat Assembly (For Manual Seat) Replacement Components With Torque Specifications (5 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for Driver Side	*B	for Front Passenger Side
*1	FRONT SEAT INNER BELT ASSEMBLY	*2	FRONT SEAT BELT ANCHOR PLATE
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

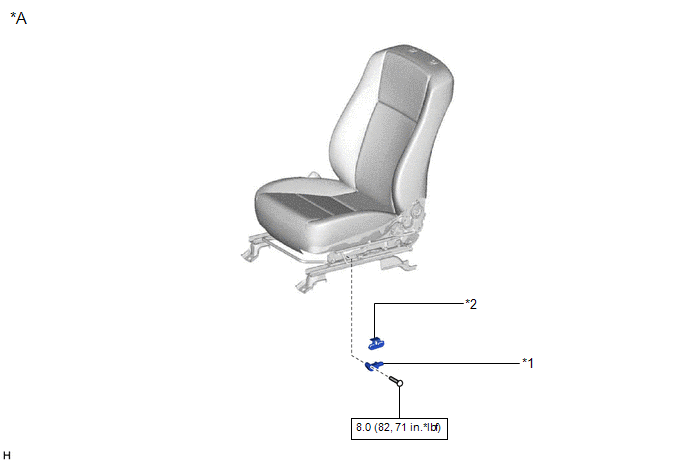

Fig 1: Front Seat Assembly (For Manual Seat) Replacement Components With Torque Specifications (6 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for Driver Side	-	-
*1	SEAT POSITION AIRBAG SENSOR	*2	SEAT SLIDE POSITION SENSOR PROTECTOR
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

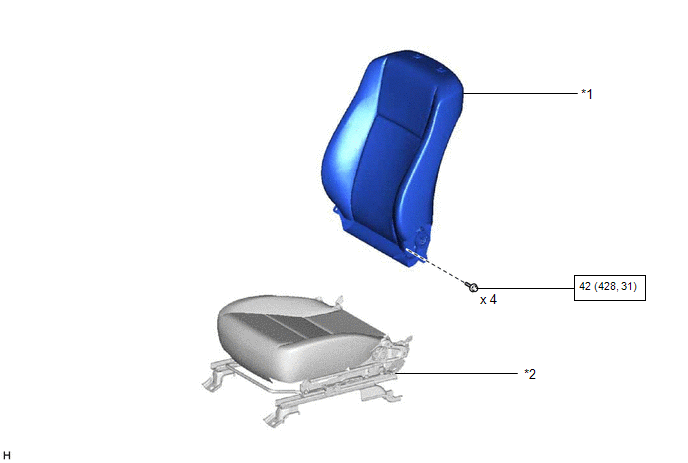

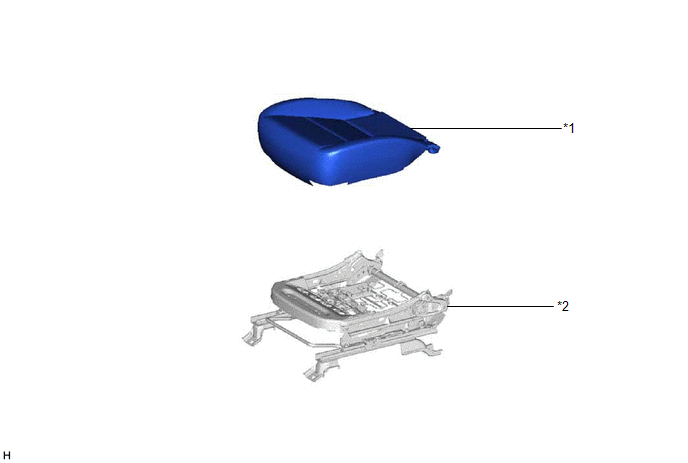

Fig 1: Front Seat Assembly (For Manual Seat) Replacement Components With Torque Specifications (7 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	SEPARATE TYPE FRONT SEATBACK ASSEMBLY	*2	SEPARATE TYPE FRONT SEAT CUSHION ASSEMBLY
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

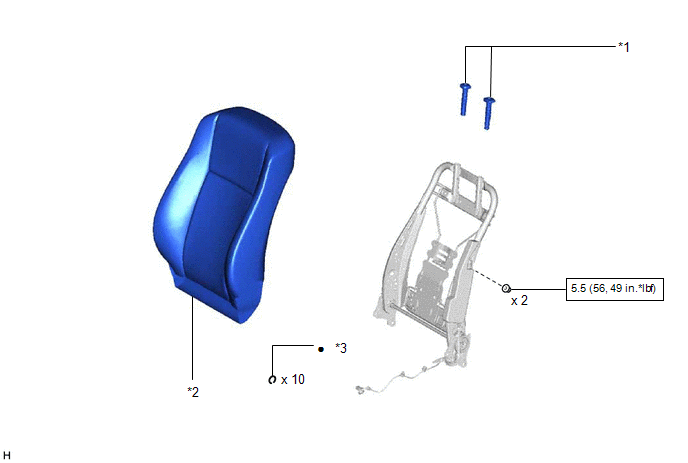

Fig 1: Front Seat Assembly (For Manual Seat) Replacement Components With Torque Specifications (8 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT SEAT HEADREST SUPPORT ASSEMBLY	*2	SEPARATE TYPE FRONT SEATBACK COVER WITH PAD
*3	HOG RING	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	•	Non-reusable part

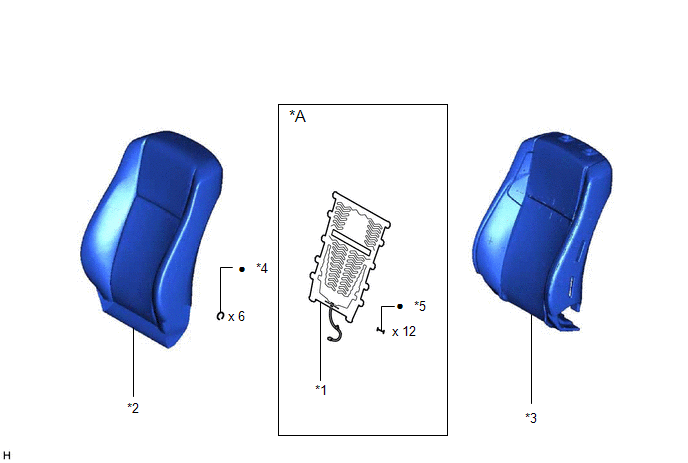

Fig 1: Front Seat Assembly (For Manual Seat) Replacement Components (9 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Seat Heater System	-	-
*1	FRONT SEATBACK HEATER ASSEMBLY	*2	SEPARATE TYPE FRONT SEATBACK COVER
*3	SEPARATE TYPE FRONT SEATBACK PAD	*4	HOG RING
*5	TAG PIN	-	-
•	Non-reusable part	-	-

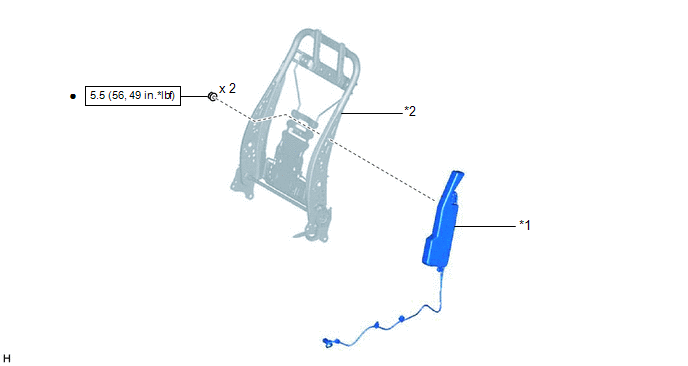

Fig 1: Front Seat Assembly (For Manual Seat) Replacement Components With Torque Specifications (10 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT SEAT AIRBAG ASSEMBLY	*2	SEPARATE TYPE FRONT SEATBACK SPRING ASSEMBLY
	N*m (kgf*cm, ft.*lbf): Specified torque	•	Non-reusable part

Fig 1: Front Seat Assembly (For Manual Seat) Replacement Components (11 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

FRONT SEATBACK EDGE PROTECTOR

*2

FRONT SEATBACK HOOK

Fig 1: Front Seat Assembly (For Manual Seat) Replacement Components (12 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD

-

-

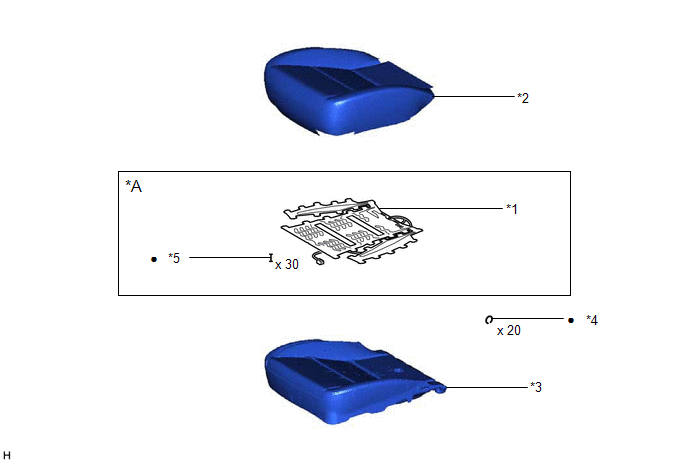

Fig 1: Front Seat Assembly (For Manual Seat) Replacement Components (13 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Seat Heater System	-	-
*1	FRONT SEAT CUSHION HEATER ASSEMBLY	*2	SEPARATE TYPE FRONT SEAT CUSHION COVER
*3	SEPARATE TYPE FRONT SEAT CUSHION PAD	*4	HOG RING
*5	TAG PIN	-	-
•	Non-reusable part	-	-

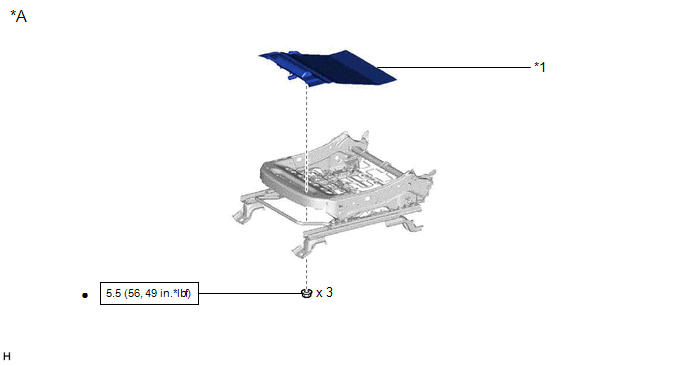

Fig 1: Front Seat Assembly (For Manual Seat) Replacement Components With Torque Specifications (14 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for Front Passenger Side	-	-
*1	FRONT SEAT AIRBAG SUB-ASSEMBLY RH	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	•	Non-reusable part

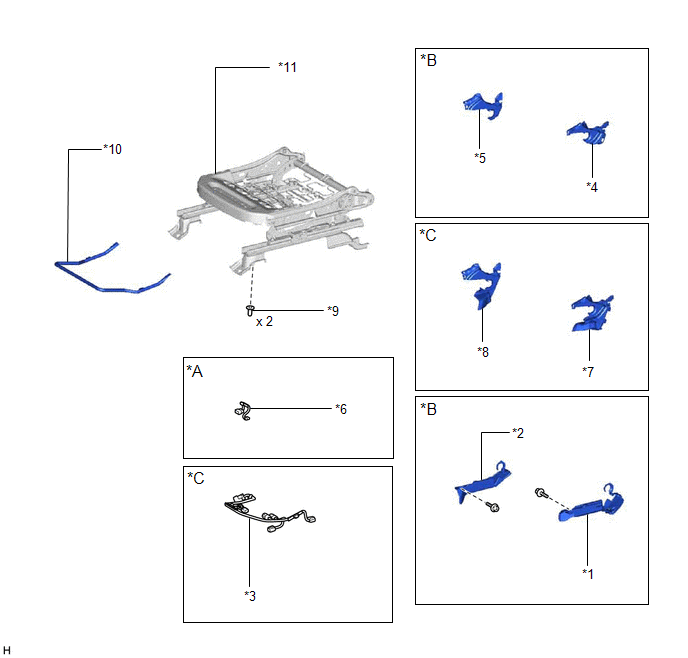

Fig 1: Front Seat Assembly (For Manual Seat) Replacement Components (15 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Seat Heater System	*B	for Driver Side
*C	for Front Passenger Side	-	-
*1	FRONT SEAT LOWER CUSHION SHIELD LH	*2	FRONT SEAT LOWER CUSHION SHIELD RH
*3	FRONT SEAT WIRE	*4	LH SEAT FRONT SEAT CUSHION EDGE PROTECTOR LH
*5	LH SEAT FRONT SEAT CUSHION EDGE PROTECTOR RH	*6	NO. 1 SEAT WIRE
*7	RH SEAT FRONT SEAT CUSHION EDGE PROTECTOR LH	*8	RH SEAT FRONT SEAT CUSHION EDGE PROTECTOR RH
*9	SEAT ADJUSTER COVER CAP	*10	SEAT TRACK ADJUSTING HANDLE
*11	SEPARATE TYPE FRONT SEAT CUSHION SPRING ASSEMBLY	-	-
