Parts Location [12/2013 - 11/2016]: Illustration

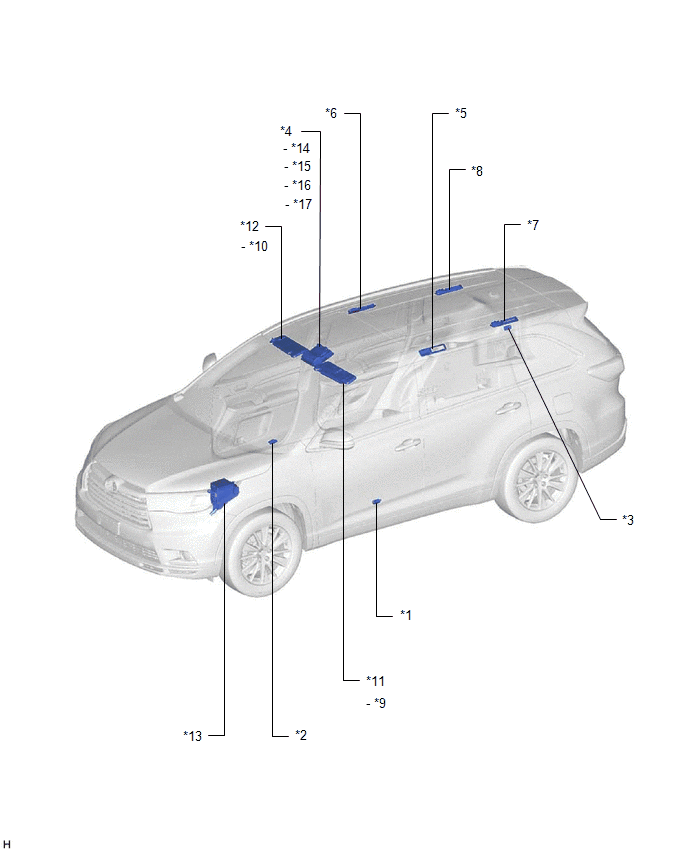

Fig 1: Lighting System Components Location (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	COURTESY LIGHT ASSEMBLY LH	*2	COURTESY LIGHT ASSEMBLY RH
*3	NO. 1 ROOM LIGHT ASSEMBLY	*4	MAP LIGHT ASSEMBLY
*5	SPOT LIGHT ASSEMBLY LH (for Front Side)	*6	SPOT LIGHT ASSEMBLY RH (for Front Side)
*7	SPOT LIGHT ASSEMBLY LH (for Rear Side)	*8	SPOT LIGHT ASSEMBLY RH (for Rear Side)
*9	VANITY LIGHT LH	*10	VANITY LIGHT RH
*11	VISOR ASSEMBLY LH	*12	VISOR ASSEMBLY RH
*13	NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - ALT FUSE - MPX-B NO. 1 FUSE - J/B-B FUSE	*14	PERSONAL LIGHT SWITCH LH
*15	PERSONAL LIGHT SWITCH RH	*16	INTERIOR LIGHT ON/OFF SWITCH
*17	INTERIOR LIGHT DOOR SWITCH	-	-

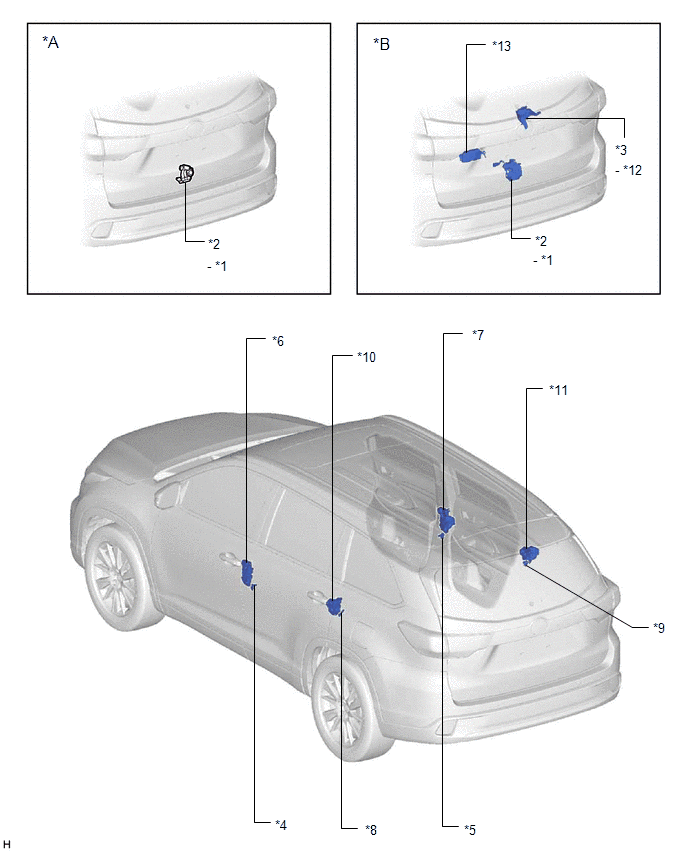

Fig 1: Lighting System Components Location (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/o Power Back Door System	*B	w/ Power Back Door System
*1	BACK DOOR COURTESY LIGHT SWITCH	*2	BACK DOOR LOCK ASSEMBLY
*3	BACK WINDOW LOCK ASSEMBLY	*4	FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH
*5	FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY RH	*6	FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH
*7	FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH	*8	REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY LH
*9	REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY RH	*10	REAR DOOR LOCK WITH MOTOR ASSEMBLY LH
*11	REAR DOOR LOCK WITH MOTOR ASSEMBLY RH	*12	BACK DOOR GLASS COURTESY LIGHT SWITCH
*13	MULTIPLEX NETWORK DOOR ECU	-	-

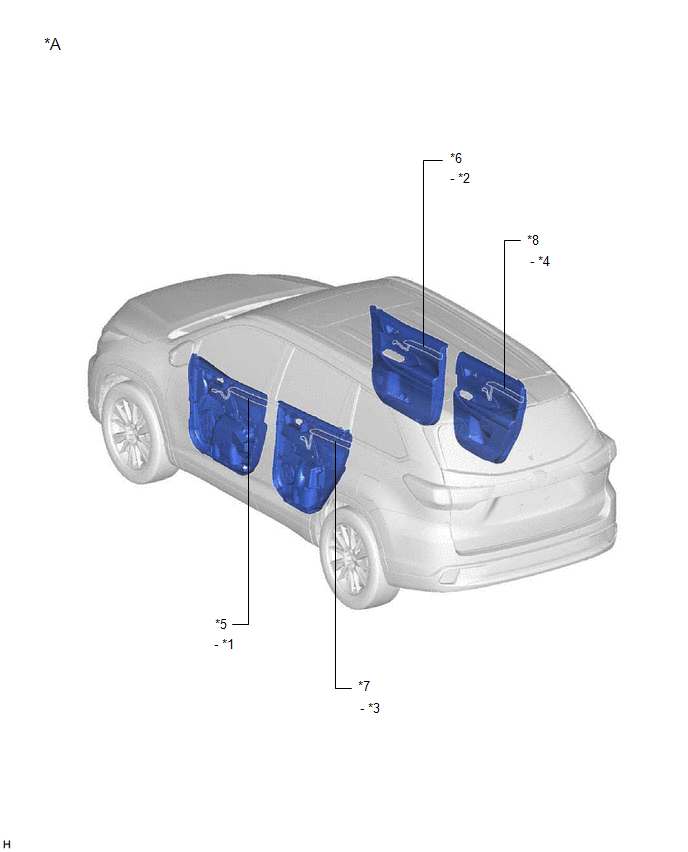

Fig 1: Lighting System Components Location (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Ambient Light	-	-
*1	FRONT DOOR AMBIENT LIGHT LH	*2	FRONT DOOR AMBIENT LIGHT RH
*3	REAR DOOR AMBIENT LIGHT LH	*4	REAR DOOR AMBIENT LIGHT RH
*5	FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH	*6	FRONT DOOR TRIM BOARD SUB-ASSEMBLY RH
*7	REAR DOOR TRIM BOARD SUB-ASSEMBLY LH	*8	REAR DOOR TRIM BOARD SUB-ASSEMBLY RH

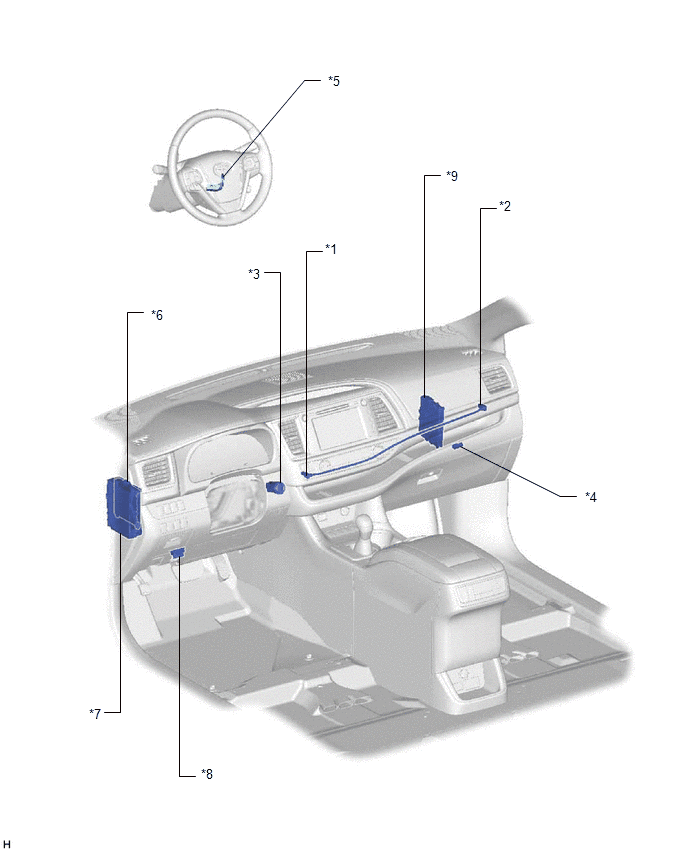

Fig 1: Lighting System Components Location (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY (Driver Side) (w/ Ambient Light)	*2	NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY (Passenger Side) (w/ Ambient Light)
*3	ENGINE SWITCH (w/ Smart Key System)	*4	GLOVE BOX LIGHT ASSEMBLY
*5	TRANSPONDER KEY COIL (IGNITION KEY CYLINDER LIGHT) (w/o Smart Key System)	*6	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*7	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - DOME CUT RELAY - IG1 NO. 3 RELAY - TAIL RELAY - ACC RELAY - ECU-ACC FUSE - IG1 NO. 3 FUSE - DOME FUSE - PANEL FUSE	*8	DLC3
*9	CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) (w/ Smart Key System)	-	-
