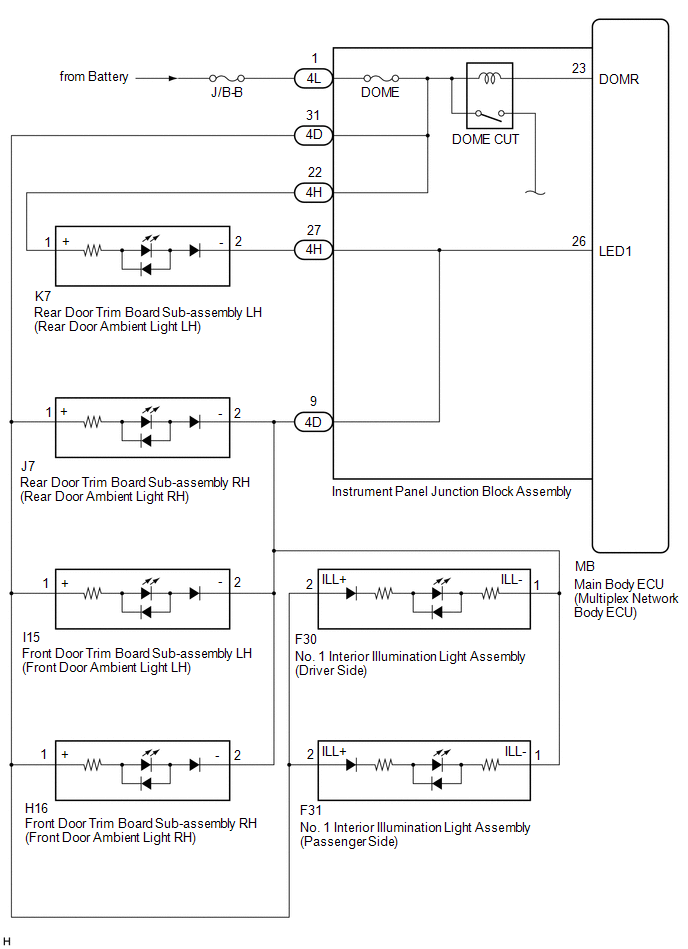

Ambient Light Circuit [12/2013 - ]: Wiring Diagram

GTY716921

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
