Components [12/2013 - ]: Illustration

Fig 1: License Plate Light Assembly Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Glass Hatch Type	-	-
*1	BACK DOOR LOCK COVER	*2	BACK DOOR TRIM COVER LH
*3	BACK DOOR TRIM COVER RH	*4	BACK DOOR TRIM PANEL ASSEMBLY
*5	BACK WINDOW UPPER PANEL TRIM	*6	NO. 1 BACK DOOR SERVICE HOLE COVER
*7	NO. 2 BACK DOOR SERVICE HOLE COVER	-	-

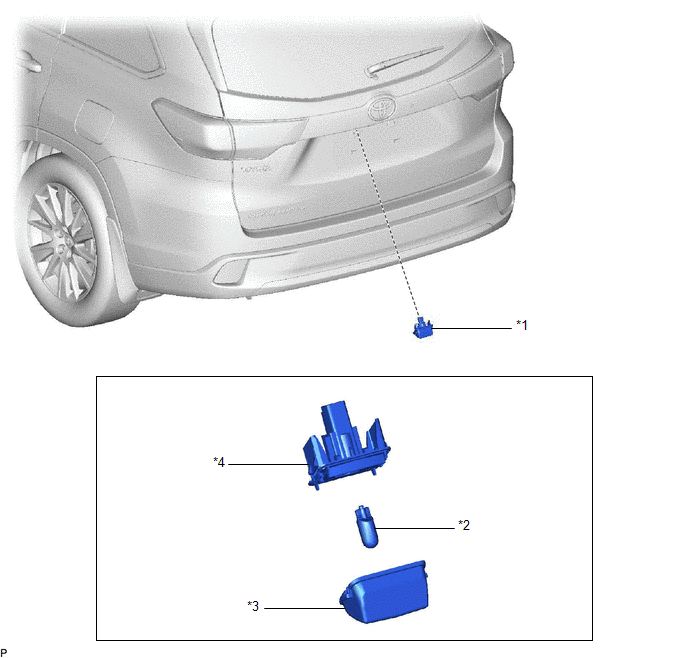

Fig 1: License Plate Light Assembly Replacement Components (2 Of 2)

*1	LICENSE PLATE LIGHT ASSEMBLY	*2	LICENSE PLATE LIGHT BULB
*3	LICENSE PLATE LIGHT LENS	*4	LICENSE PLATE LIGHT BODY
