Removal [12/2013 - 11/2016]: Procedure

  1. REMOVE RAIN SENSOR COVER
    1. Disengage the 2 guides as shown in the illustration.
      GTY446615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides and remove the rain sensor cover as shown in the illustration.
      GTY446617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE LANE DEPARTURE WARNING CAMERA COVER
    1. Disengage the 4 guides and remove the lane departure warning camera cover as shown in the illustration.
      GTY446611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE LANE DEPARTURE WARNING CAMERA
    1. Disconnect the connector.

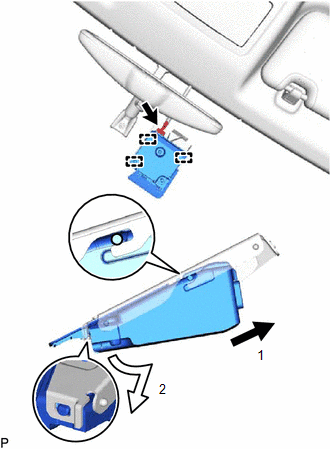

      GTY424168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 3 guides and remove the lane departure warning camera as indicated by the arrows, in the order shown in the illustration.
      NOTE:
      • Do not pull the harness forcibly when disconnecting the connector.
      • If the lane departure warning camera bracket is deformed or damaged, replace it together with the windshield glass.
      • If the lane departure warning camera is dropped, replace it with a new one.
