Removal [11/2016 - ]: Procedure

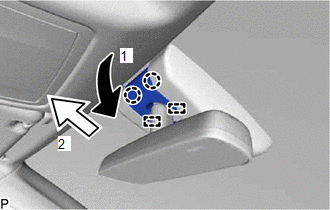

REMOVE NO. 2 FORWARD RECOGNITION COVER

Pull the No. 2 forward recognition cover in the direction indicated by the arrow (1) in the illustration to disengage the 2 claws.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

If these claws are disengaged separately, they may break. Insert a molding remover between them and pull it down to disengage the claws simultaneously.

Pull the No. 2 forward recognition cover in the direction indicated by the arrow (2) in the illustration to disengage the 2 guides and remove the No. 2 forward recognition cover.

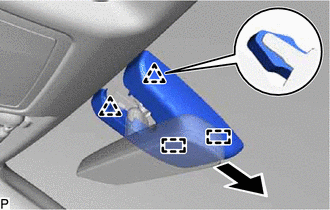

REMOVE NO. 1 FORWARD RECOGNITION COVER

Disengage the 2 clips and 2 guides to remove the No. 1 forward recognition cover as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

To avoid damaging the guides, always slide the No. 1 forward recognition cover parallel to the windshield glass.

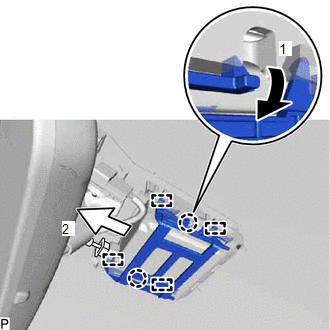

REMOVE FORWARD RECOGNITION LATCH

Disengage the 2 claws in the direction indicated by the arrow (1) in the illustration.

Disengage the 4 guides in the direction indicated by the arrow (2) in the illustration to remove the forward recognition latch.

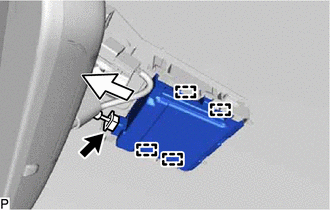

REMOVE FORWARD RECOGNITION CAMERA

Disconnect the connector.

Disengage the 4 guides and remove the forward recognition camera as shown in the illustration.
NOTE:
- Do not pull the harness forcibly when disconnecting the connector.
- If the forward recognition camera bracket is deformed or damaged, replace it together with the windshield glass.
- If the forward recognition camera has been struck or dropped, replace it with a new one.
- Do not apply excessive force.
