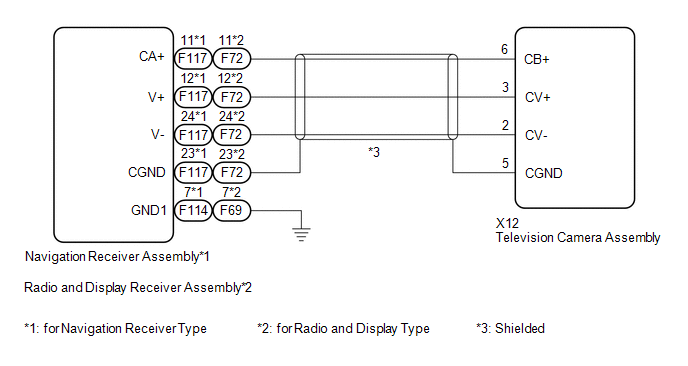

DTC C1622: Back Camera Disconnected [12/2013 - 11/2016]: Wiring Diagram

GTY447644

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
