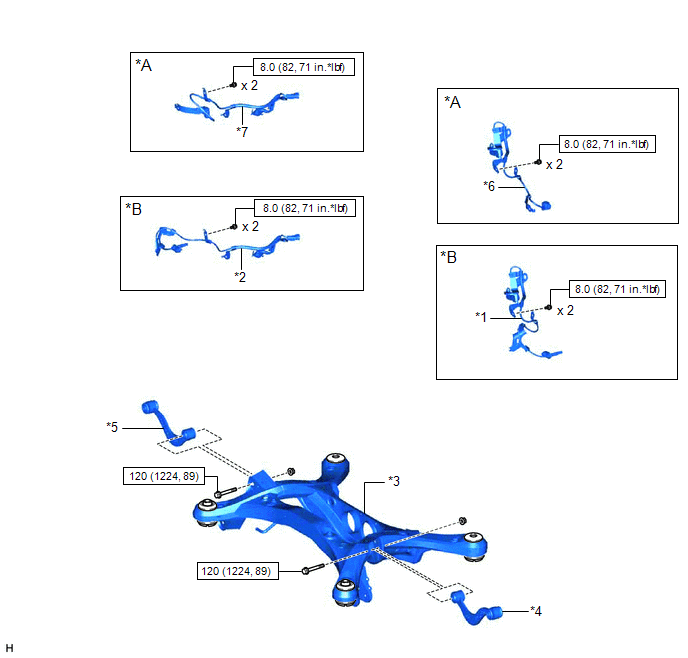

Components [12/2013 - ]: Illustration
| Callout | Description | Callout | Description |
| *A | for 2WD | *B | for AWD |
| *1 | REAR SPEED SENSOR LH | *2 | REAR SPEED SENSOR RH |
| *3 | REAR SUSPENSION MEMBER SUB-ASSEMBLY | *4 | REAR UPPER CONTROL ARM ASSEMBLY LH |
| *5 | REAR UPPER CONTROL ARM ASSEMBLY RH | *6 | SKID CONTROL SENSOR WIRE LH |
| *7 | SKID CONTROL SENSOR WIRE RH | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
