Removal [12/2013 - ]: Procedure

  1. REMOVE REAR WHEEL
  2. REMOVE REAR SUSPENSION ARM COVER

    See step  2 , or see step  2

  3. SEPARATE REAR SPEED SENSOR (for AWD)
    1. Remove the bolt and separate the rear speed sensor from the rear trailing arm assembly.
      GTY432337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE REAR TRAILING ARM ASSEMBLY
    1. Remove the 2 bolts and separate the No. 3 parking brake cable assembly from the rear trailing arm assembly.
      GTY452258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Support the rear No. 2 suspension arm assembly using a jack and wooden block.
      GTY452017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Wooden Block
      *b Jack
      WARNING:

      Do not jack up the rear No. 2 suspension arm assembly too high as the vehicle may fall.

      NOTE:

      When jacking up the rear No. 2 suspension arm assembly, be sure to jack it up slowly.

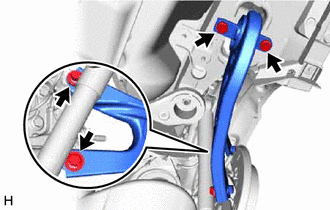

    3. Remove the 4 bolts, 2 washers and rear trailing arm assembly.
      GTY432338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Slowly lower the rear No. 2 suspension arm assembly.
