Components [12/2013 - ]: Illustration

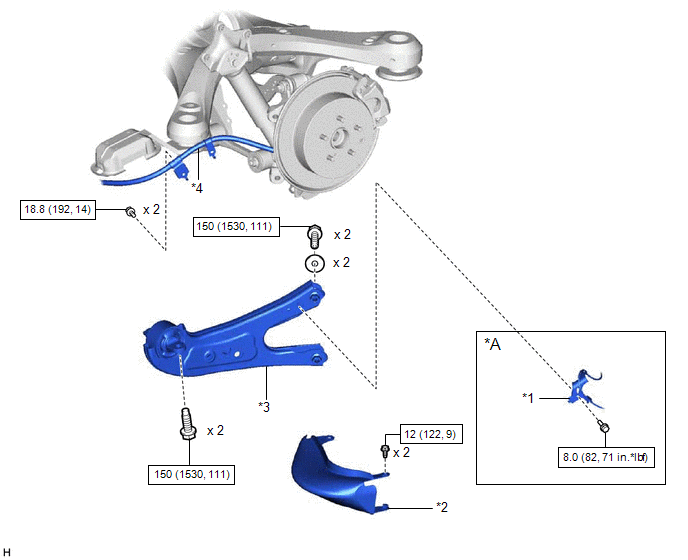

Fig 1: Rear Trailing Arm Replacement Components With Torque Specifications
GTY455086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for AWD - -
*1 REAR SPEED SENSOR *2 REAR SUSPENSION ARM COVER
*3 REAR TRAILING ARM ASSEMBLY *4 NO. 3 PARKING BRAKE CABLE ASSEMBLY
N*m (kgf*cm, ft.*lbf): Specified torque - -
