Installation [12/2013 - ]: Procedure

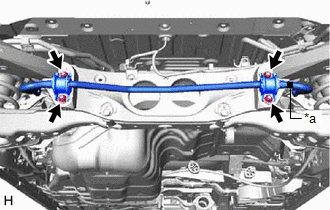

1. Install the 2 rear stabilizer bushings to the inside of the stoppers on the rear stabilizer bar.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Stopper
   	Front of the Vehicle

1. Install the 2 rear No. 1 stabilizer bar brackets to the 2 rear stabilizer bushings.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Identification Shape
   *b	Identification Mark

   NOTE:

   • Ensure that the identification shape faces upward.
   • Ensure that the identification mark faces the right side of the vehicle.

1. Install the rear stabilizer bar, 2 rear No. 1 stabilizer bar brackets and 2 rear stabilizer bushings to the rear suspension member sub-assembly with the 4 nuts.

   Torque: 75 N*m (765 kgf*cm, 55 ft.*lbf)

   NOTE:

   Ensure that the identification mark faces the right side of the vehicle.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Identification Mark

1. Secure the rear lower stabilizer bracket LH in a vise using aluminum plates.
   NOTE:

   Do not overtighten the vise.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Install the rear stabilizer link sub-assembly LH to the rear lower stabilizer bracket LH with the nut.

   Torque: 90 N*m (918 kgf*cm, 66 ft.*lbf)

   HINT:

   If the ball joint turns together with the nut, use a 6 mm hexagon socket wrench to hold the stud bolt.

3. Install the rear stabilizer link sub-assembly LH to the rear stabilizer bar with the nut (B).

   Torque: 90 N*m (918 kgf*cm, 66 ft.*lbf)

   HINT:

   If the ball joint turns together with the nut, use a 6 mm hexagon socket wrench to hold the stud bolt.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Install the rear stabilizer link sub-assembly LH to the rear No. 2 suspension arm assembly LH with the 2 nuts (A).

   Torque: 82 N*m (836 kgf*cm, 60 ft.*lbf)

HINT:

Perform the same procedure as for the LH side.

Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)
