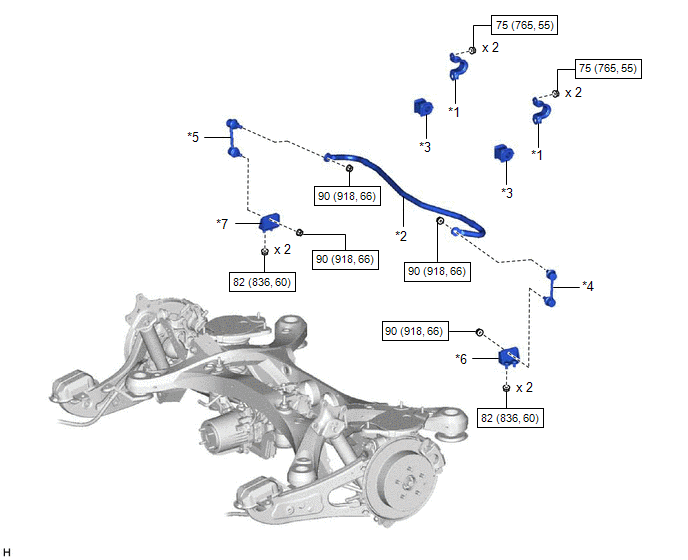

Components [12/2013 - ]: Illustration
| Callout | Description | Callout | Description |
| *1 | REAR NO. 1 STABILIZER BAR BRACKET | *2 | REAR STABILIZER BAR |
| *3 | REAR STABILIZER BUSHING | *4 | REAR STABILIZER LINK SUB-ASSEMBLY LH |
| *5 | REAR STABILIZER LINK SUB-ASSEMBLY RH | *6 | REAR LOWER STABILIZER BRACKET LH |
| *7 | REAR LOWER STABILIZER BRACKET RH | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
