Components [12/2013 - 11/2015]: Illustration

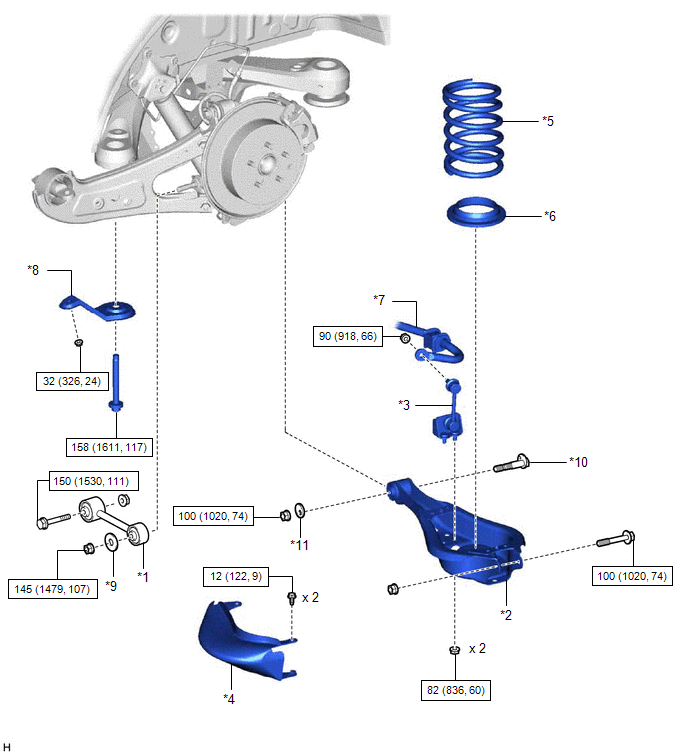

Fig 1: Rear Lower Arm Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	REAR NO. 1 SUSPENSION ARM ASSEMBLY	*2	REAR NO. 2 SUSPENSION ARM ASSEMBLY
*3	REAR STABILIZER LINK SUB-ASSEMBLY	*4	REAR SUSPENSION ARM COVER
*5	REAR COIL SPRING	*6	REAR LOWER COIL SPRING INSULATOR
*7	REAR STABILIZER BAR	*8	REAR LOWER SUSPENSION MEMBER STOPPER
*9	SPACER	*10	TOE ADJUST CAM SUB-ASSEMBLY
*11	NO. 2 ADJUST CAM	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-
