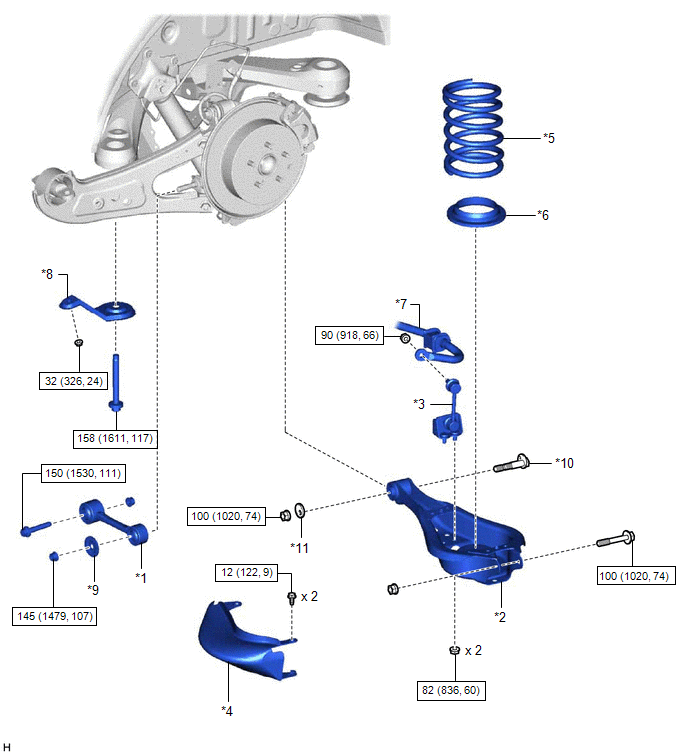

Components [11/2015 - ]: Illustration
| Callout | Description | Callout | Description |
| *1 | REAR NO. 1 SUSPENSION ARM ASSEMBLY | *2 | REAR NO. 2 SUSPENSION ARM ASSEMBLY |
| *3 | REAR STABILIZER LINK SUB-ASSEMBLY | *4 | REAR SUSPENSION ARM COVER |
| *5 | REAR COIL SPRING | *6 | REAR LOWER COIL SPRING INSULATOR |
| *7 | REAR STABILIZER BAR | *8 | REAR LOWER SUSPENSION MEMBER STOPPER |
| *9 | SPACER | *10 | TOE ADJUST CAM SUB-ASSEMBLY |
| *11 | NO. 2 ADJUST CAM | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
