Installation [12/2013 - ]: Procedure

1. Install the rear lower coil spring insulator to the rear No. 2 suspension arm assembly.

1. Install the rear upper coil spring insulator.

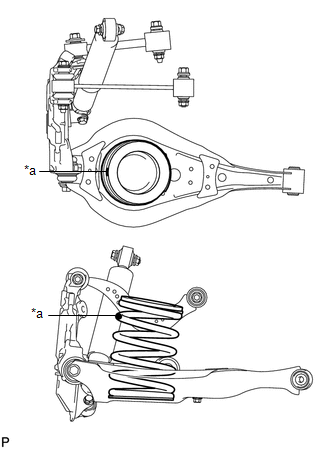

1. Set the rear coil spring to the rear No. 2 suspension arm assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Identification Mark

   NOTE:

   Set the rear coil spring so that the identification mark is positioned as shown in the illustration.

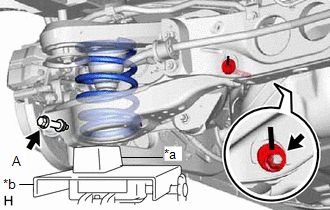

2. Using a jack and wooden block, slowly jack up the rear No. 2 suspension arm assembly and then temporarily install the rear No. 2 suspension arm assembly to the rear axle assembly with the bolt (A) and nut.

   Torque: 100 N*m (1020 kgf*cm, 74 ft.*lbf)

   WARNING:

   Do not jack up the rear No. 2 suspension arm assembly too high as the vehicle may fall.

   NOTE:

   • Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.
   • When jacking up the rear No. 2 suspension arm assembly, be sure to jack it up slowly.
   • Insert the bolt with the threaded end facing the front of the vehicle.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Wooden Block
   *b	Jack

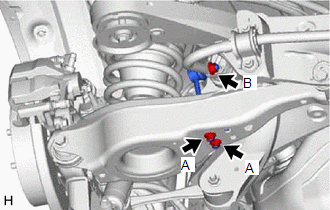

1. Install the rear stabilizer link sub-assembly to the rear stabilizer bar with the nut (B).

   Torque: 90 N*m (918 kgf*cm, 66 ft.*lbf)

   HINT:

   If the ball joint turns together with the nut, use a 6 mm hexagon socket wrench to hold the stud bolt.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Install the rear stabilizer link sub-assembly to the rear No. 2 suspension arm assembly with the 2 nuts (A).

   Torque: 82 N*m (836 kgf*cm, 60 ft.*lbf)

See step  6 , or see step  6

Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)

See step  8 , or see step  8

Refer to ADJUSTMENT [12/2013 - 11/2016] , or refer to ADJUSTMENT [11/2016 - ]
