Components [12/2013 - 11/2015]: Illustration

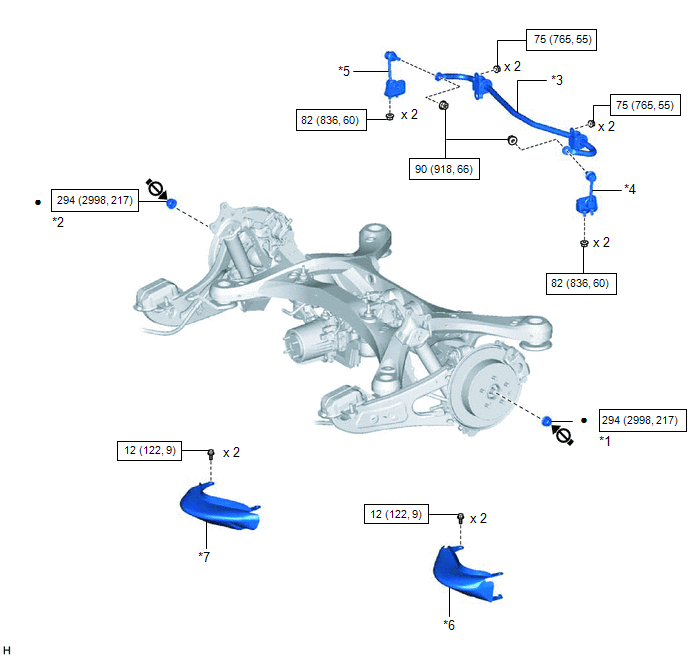

| Callout | Description | Callout | Description |
| *1 | REAR AXLE SHAFT NUT LH | *2 | REAR AXLE SHAFT NUT RH |
| *3 | REAR STABILIZER BAR | *4 | REAR STABILIZER LINK SUB-ASSEMBLY LH |
| *5 | REAR STABILIZER LINK SUB-ASSEMBLY RH | *6 | REAR SUSPENSION ARM COVER LH |
| *7 | REAR SUSPENSION ARM COVER RH | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| Do not apply lubricants to the threaded parts | - | - |

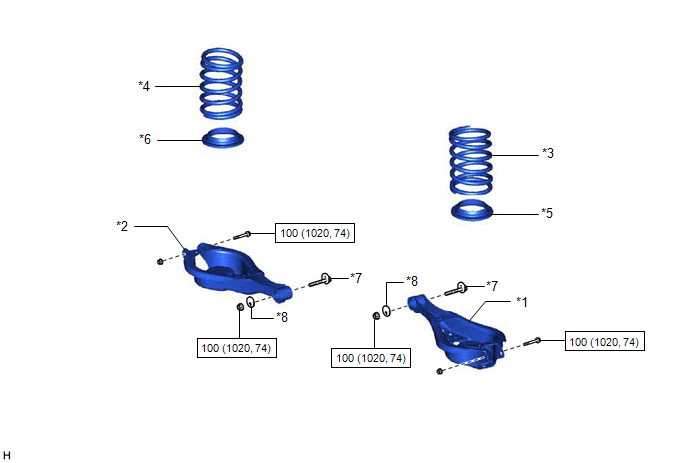

| Callout | Description | Callout | Description |
| *1 | REAR NO. 2 SUSPENSION ARM ASSEMBLY LH | *2 | REAR NO. 2 SUSPENSION ARM ASSEMBLY RH |
| *3 | REAR COIL SPRING LH | *4 | REAR COIL SPRING RH |
| *5 | REAR LOWER COIL SPRING INSULATOR LH | *6 | REAR LOWER COIL SPRING INSULATOR RH |
| *7 | TOE ADJUST CAM SUB-ASSEMBLY | *8 | NO. 2 ADJUST CAM |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

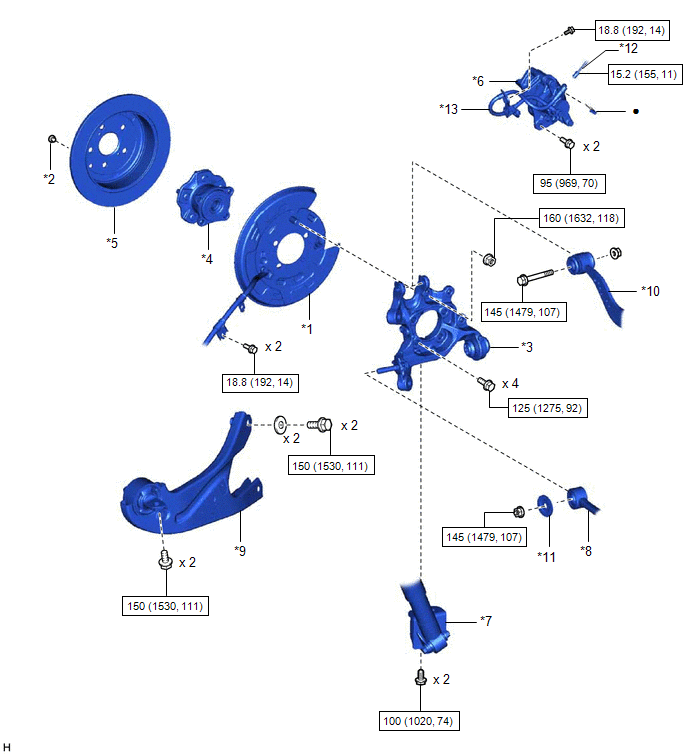

| Callout | Description | Callout | Description |
| *1 | PARKING BRAKE ASSEMBLY | *2 | PARKING BRAKE SHOE ADJUSTING HOLE PLUG |
| *3 | REAR AXLE CARRIER SUB-ASSEMBLY LH | *4 | REAR AXLE HUB AND BEARING ASSEMBLY LH |
| *5 | REAR DISC | *6 | REAR DISC BRAKE CALIPER ASSEMBLY LH |
| *7 | REAR LOWER SHOCK ABSORBER BRACKET SUB-ASSEMBLY LH | *8 | REAR NO. 1 SUSPENSION ARM ASSEMBLY LH |
| *9 | REAR TRAILING ARM ASSEMBLY LH | *10 | REAR UPPER CONTROL ARM ASSEMBLY LH |
| *11 | SPACER | *12 | REAR NO. 4 BRAKE TUBE |
| *13 | REAR FLEXIBLE HOSE LH | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |

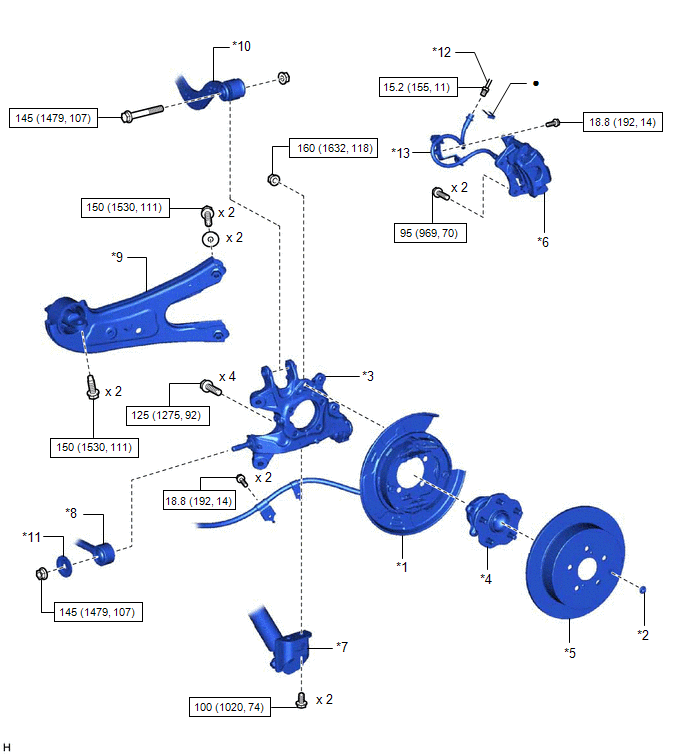

| Callout | Description | Callout | Description |
| *1 | PARKING BRAKE ASSEMBLY | *2 | PARKING BRAKE SHOE ADJUSTING HOLE PLUG |
| *3 | REAR AXLE CARRIER SUB-ASSEMBLY RH | *4 | REAR AXLE HUB AND BEARING ASSEMBLY RH |
| *5 | REAR DISC | *6 | REAR DISC BRAKE CALIPER ASSEMBLY RH |
| *7 | REAR LOWER SHOCK ABSORBER BRACKET SUB-ASSEMBLY RH | *8 | REAR NO. 1 SUSPENSION ARM ASSEMBLY RH |
| *9 | REAR TRAILING ARM ASSEMBLY RH | *10 | REAR UPPER CONTROL ARM ASSEMBLY RH |
| *11 | SPACER | *12 | REAR NO. 3 BRAKE TUBE |
| *13 | REAR FLEXIBLE HOSE RH | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |

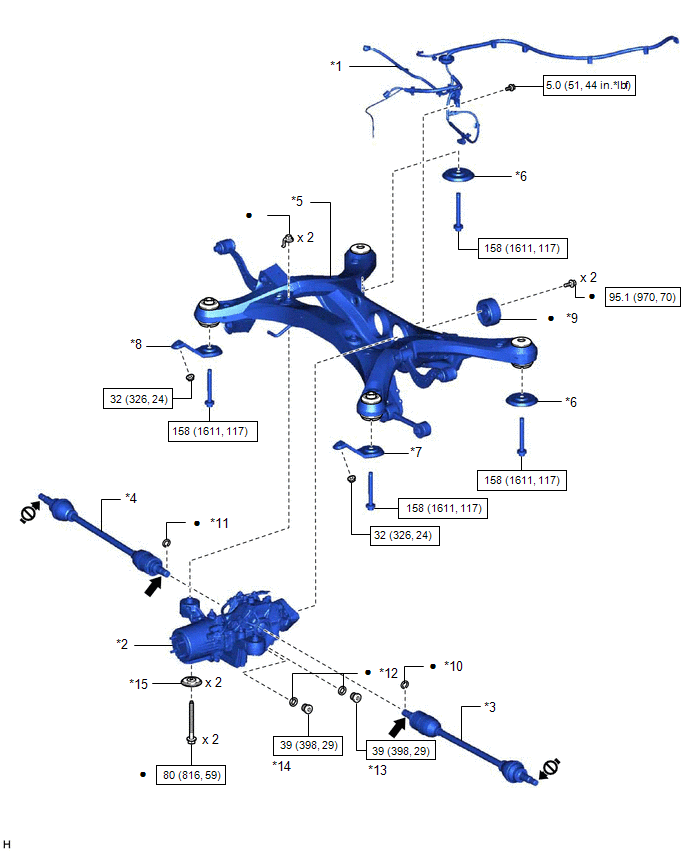

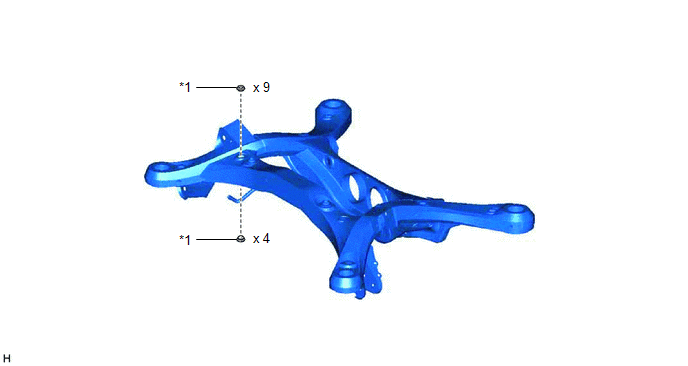

| Callout | Description | Callout | Description |
| *1 | FRAME WIRE | *2 | REAR DIFFERENTIAL CARRIER ASSEMBLY WITH DIFFERENTIAL SUPPORT |
| *3 | REAR DRIVE SHAFT ASSEMBLY LH | *4 | REAR DRIVE SHAFT ASSEMBLY RH |
| *5 | REAR SUSPENSION MEMBER SUB-ASSEMBLY | *6 | REAR LOWER SUSPENSION BRACE |
| *7 | REAR LOWER SUSPENSION MEMBER STOPPER LH | *8 | REAR LOWER SUSPENSION MEMBER STOPPER RH |
| *9 | REAR NO. 2 DIFFERENTIAL MOUNT CUSHION | *10 | REAR DRIVE SHAFT SNAP RING LH |
| *11 | REAR DRIVE SHAFT SNAP RING RH | *12 | GASKET |
| *13 | REAR DIFFERENTIAL DRAIN PLUG | *14 | DIFFERENTIAL INSPECTION PLUG |
| *15 | LOWER REAR DIFFERENTIAL MOUNT STOPPER | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| Toyota genuine differential gear oil LT 75W-85 GL-5 or equivalent | Do not apply lubricants to the threaded parts |

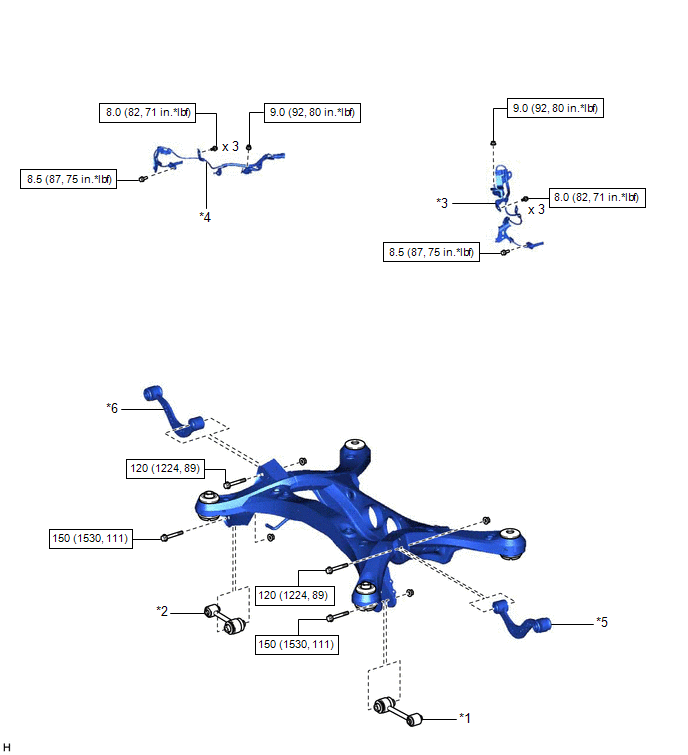

| Callout | Description | Callout | Description |
| *1 | REAR NO. 1 SUSPENSION ARM ASSEMBLY LH | *2 | REAR NO. 1 SUSPENSION ARM ASSEMBLY RH |
| *3 | REAR SPEED SENSOR LH | *4 | REAR SPEED SENSOR RH |
| *5 | REAR UPPER CONTROL ARM ASSEMBLY LH | *6 | REAR UPPER CONTROL ARM ASSEMBLY RH |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

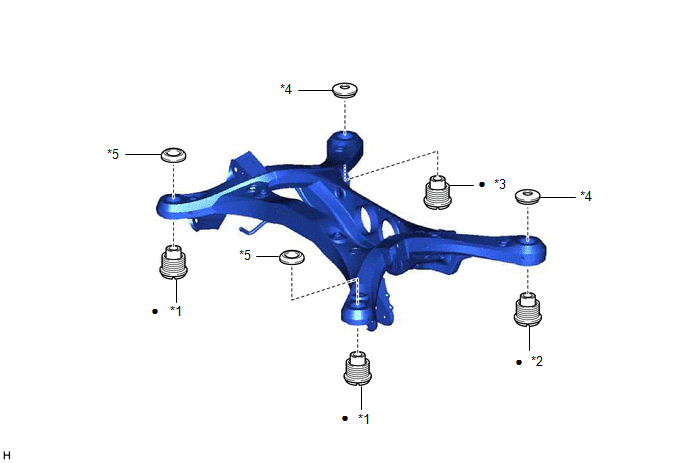

| *1 | REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION | *2 | REAR SUSPENSION MEMBER REAR BODY MOUNTING CUSHION LH |
| *3 | REAR SUSPENSION MEMBER REAR BODY MOUNTING CUSHION RH | *4 | REAR SUSPENSION MEMBER REAR UPPER STOPPER |
| *5 | REAR SUSPENSION MEMBER UPPER STOPPER | - | - |
| • | Non-reusable part | - | - |
