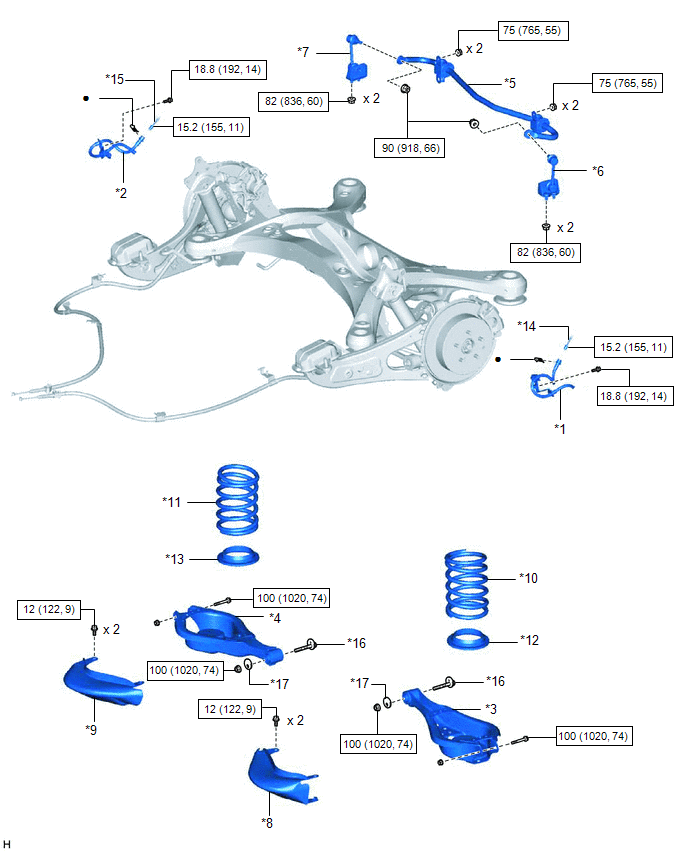

Components [12/2013 - 11/2015]: Illustration
| Callout | Description | Callout | Description |
| *1 | REAR FLEXIBLE HOSE LH | *2 | REAR FLEXIBLE HOSE RH |
| *3 | REAR NO. 2 SUSPENSION ARM ASSEMBLY LH | *4 | REAR NO. 2 SUSPENSION ARM ASSEMBLY RH |
| *5 | REAR STABILIZER BAR | *6 | REAR STABILIZER LINK SUB-ASSEMBLY LH |
| *7 | REAR STABILIZER LINK SUB-ASSEMBLY RH | *8 | REAR SUSPENSION ARM COVER LH |
| *9 | REAR SUSPENSION ARM COVER RH | *10 | REAR COIL SPRING LH |
| *11 | REAR COIL SPRING RH | *12 | REAR LOWER COIL SPRING INSULATOR LH |
| *13 | REAR LOWER COIL SPRING INSULATOR RH | *14 | REAR NO. 4 BRAKE TUBE |
| *15 | REAR NO. 3 BRAKE TUBE | *16 | TOE ADJUST CAM SUB-ASSEMBLY |
| *17 | NO. 2 ADJUST CAM | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |

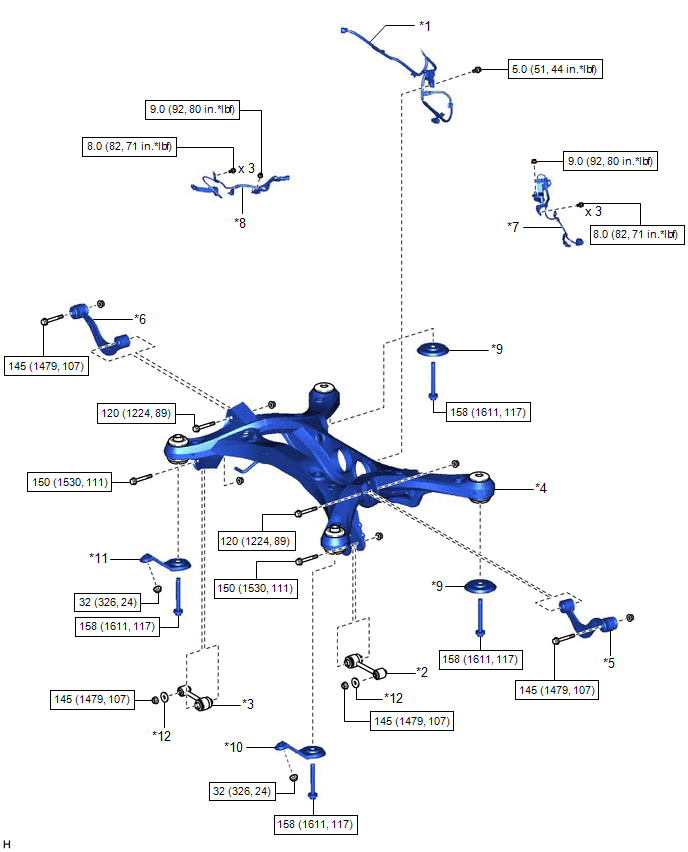

| Callout | Description | Callout | Description |
| *1 | FRAME WIRE | *2 | REAR NO. 1 SUSPENSION ARM ASSEMBLY LH |
| *3 | REAR NO. 1 SUSPENSION ARM ASSEMBLY RH | *4 | REAR SUSPENSION MEMBER SUB-ASSEMBLY |
| *5 | REAR UPPER CONTROL ARM ASSEMBLY LH | *6 | REAR UPPER CONTROL ARM ASSEMBLY RH |
| *7 | SKID CONTROL SENSOR WIRE LH | *8 | SKID CONTROL SENSOR WIRE RH |
| *9 | REAR LOWER SUSPENSION BRACE | *10 | REAR LOWER SUSPENSION MEMBER STOPPER LH |
| *11 | REAR LOWER SUSPENSION MEMBER STOPPER RH | *12 | SPACER |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
| *1 | REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION | *2 | REAR SUSPENSION MEMBER REAR BODY MOUNTING CUSHION LH |
| *3 | REAR SUSPENSION MEMBER REAR BODY MOUNTING CUSHION RH | *4 | REAR SUSPENSION MEMBER REAR UPPER STOPPER |
| *5 | REAR SUSPENSION MEMBER UPPER STOPPER | - | - |
| • | Non-reusable part | - | - |
