Removal [02/2014 - 11/2015]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. REMOVE NO. 3 DECK BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  3. REMOVE DECK SIDE TRIM BOX LH

    Refer to PROCEDURE - Step 3

  4. REMOVE REAR DECK FLOOR BOX

    Refer to PROCEDURE - Step 4

  5. REMOVE REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 5

  6. REMOVE REAR NO. 2 SEAT ASSEMBLY

    Refer to REMOVAL [02/2014 - 11/2016]

  7. REMOVE REAR OUTER SEAT TRACK BRACKET COVER

    Refer to PROCEDURE - Step 4

  8. REMOVE REAR DOOR SCUFF PANEL LH (for LH Side)

    Refer to PROCEDURE - Step 12

  9. REMOVE REAR DOOR SCUFF PLATE LH (for LH Side)

    Refer to PROCEDURE - Step 13

  10. REMOVE REAR DOOR SCUFF PLATE RH (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 13

  11. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP
    1. Disconnect the rear door opening trim weatherstrip.
  12. REMOVE FRONT DECK SIDE TRIM COVER

    Refer to PROCEDURE - Step 28

  13. DISCONNECT REAR NO. 1 SEAT OUTER BELT ASSEMBLY

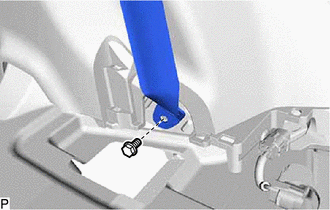

    1. Remove the bolt to disconnect the floor anchor of the rear No. 1 seat outer belt assembly.
      GTY427269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE NO. 2 DECK SIDE TRIM COVER (for LH Side)

    Refer to PROCEDURE - Step 30

  15. REMOVE NO. 1 DECK SIDE TRIM COVER (for RH Side)

    Refer to PROCEDURE - Step 41

  16. DISCONNECT REAR NO. 2 SEAT OUTER BELT ASSEMBLY

    See step  16

  17. REMOVE COOLER (NO. 2 ROOM TEMP. SENSOR) THERMISTOR (for RH Side)

    Refer to PROCEDURE - Step 1

  18. REMOVE NO. 1 ROOM LIGHT ASSEMBLY (for RH Side)

    Refer to PROCEDURE - Step 1

  19. REMOVE DECK TRIM POCKET COVER

    Refer to PROCEDURE - Step 33

  20. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

    Refer to PROCEDURE - Step 34

  21. REMOVE ROPE HOOK

    Refer to PROCEDURE - Step 35

  22. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH (for LH Side)

    Refer to PROCEDURE - Step 36

  23. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH (for RH Side)

    Refer to PROCEDURE - Step 49

  24. REMOVE QUARTER PILLAR GARNISH

    Refer to PROCEDURE - Step 37

  25. REMOVE REAR NO. 1 SEAT OUTER BELT ASSEMBLY

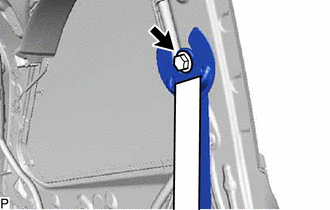

    1. Loosen the bolt and disconnect the shoulder anchor of the rear No. 1 seat outer belt assembly.

      HINT:

      The bolt cannot be removed from the shoulder anchor of the rear No. 1 seat outer belt assembly.

      GTY427270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

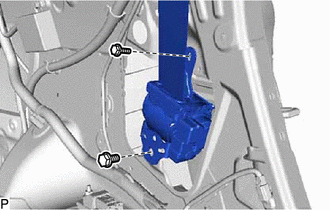

    2. Remove the 2 bolts and rear No. 1 seat outer belt assembly.
      GTY427266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
