Installation [12/2013 - 11/2016]: Procedure

1. Apply MP grease to the lip of a new rear engine oil seal.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Rear Engine Oil Seal Retainer
   *a	Oil Seal Installation Depth

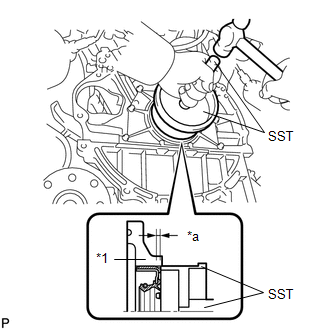

2. Using SST and a hammer, tap in the rear engine oil seal.
   • SST: 09223-15030
   • SST: 09950-70010
     1. 09951-07150

   Oil Seal Installation Depth

   -0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

   NOTE:

   • Keep the lip free from foreign matter.
   • Do not tap in the rear engine oil seal at an angle.

1. Using SST, hold the crankshaft pulley.
   • SST: 09213-70011
     1. 09213-70020
   • SST: 09330-00021
2. Clean the 8 bolts and 8 bolt holes.
3. Install the front drive plate spacer.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Align the pin of the front drive plate spacer with the pin hole of the crankshaft.

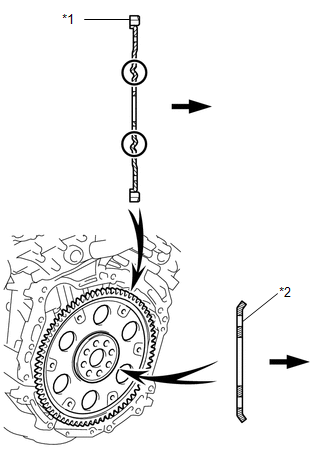

4. Install the drive plate and ring gear sub-assembly and rear drive plate spacer to the crankshaft.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Drive Plate and Ring Gear Sub-assembly
   *2	Rear Drive Plate Spacer
   	Transaxle Side

5. Apply adhesive to 2 or 3 threads at the end of each of the 8 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Adhesive

   Adhesive

   Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

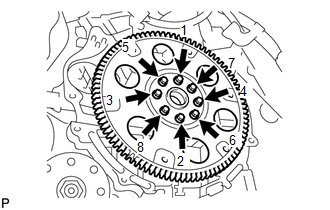

6. Install and uniformly tighten the 8 bolts in several steps in the sequence shown in the illustration.
   Fig 1: Tightening Sequence Of Drive Plate And Ring Gear Sub-Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 83 N*m (846 kgf*cm, 61 ft.*lbf)

   NOTE:

   Do not start the engine for at least 1 hour after installing the drive plate and ring gear sub-assembly.
