Installation [12/2013 - 11/2015]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Highlander, 2015 Toyota Highlander, and 2014 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL TIMING CHAIN CASE OIL SEAL
    1. Apply MP grease to the lip of a new timing chain case oil seal.

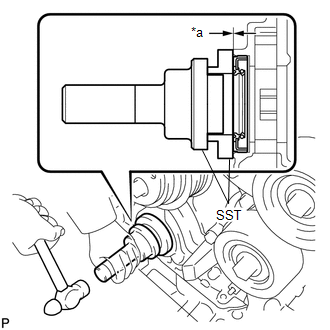

      GTY450826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Oil Seal Installation Depth
    2. Using SST and a hammer, tap in the timing chain case oil seal until its surface is flush with the timing chain cover edge.
      • SST: 09223-22010
      • SST: 09506-35010

      Oil Seal Installation Depth

      0 to 1.0 mm (0 to 0.0394 in.)

      NOTE:
      • Keep the lip free from foreign matter.
      • Do not tap in the timing chain case oil seal at an angle.
  2. INSTALL CRANKSHAFT PULLEY
    1. Install the pulley set key to the crankshaft.
    2. Align the pulley set key with the key groove of the crankshaft pulley.
    3. Using SST, install the crankshaft pulley bolt.

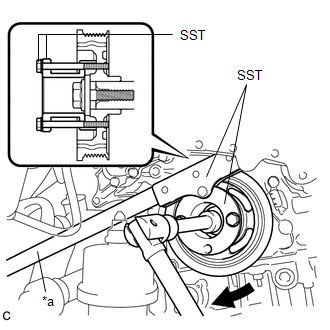

      GTY436391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hold
      Turn
      • SST: 09213-70011
        1. 09213-70020
      • SST: 09330-00021

      Torque: 250 N*m (2549 kgf*cm, 184 ft.*lbf)

  3. INSTALL V-RIBBED BELT

    Refer to INSTALLATION [12/2013 - 11/2016]
