Removal [12/2013 - 11/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Highlander, 2015 Toyota Highlander, and 2014 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE CAMSHAFT HOUSING SUB-ASSEMBLY LH

    Refer to REMOVAL [12/2013 - 11/2016]

  2. REMOVE NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY
    1. Remove the 24 No. 1 valve rocker arm sub-assemblies.

      HINT:

      Arrange the removed parts in the correct order.

  3. REMOVE VALVE LASH ADJUSTER ASSEMBLY
    1. Remove the 24 valve lash adjuster assemblies from the cylinder head sub-assembly.

      HINT:

      Arrange the removed parts in the correct order.

  4. REMOVE VALVE STEM CAP
    1. Remove the 24 valve stem caps.
  5. REMOVE WATER OUTLET

    Refer to PROCEDURE - Step 24

  6. REMOVE CYLINDER HEAD SUB-ASSEMBLY RH
    1. Using a 10 mm bi-hexagon wrench, uniformly loosen the 8 cylinder head set bolts in the order shown in the illustration. Remove the 8 cylinder head set bolts and plate washers.

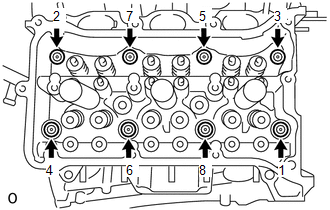

      Fig 1: Loosening Sequence Of 8 Cylinder Head Set Bolts
      GTY436332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Be careful not to drop plate washers into the cylinder head sub-assembly RH.
      • Warpage or cracking of the cylinder head sub-assembly RH may result from removing bolts in the incorrect order.

      HINT:

      Arrange the removed parts in the correct order.

    2. Remove the cylinder head sub-assembly RH.
  7. REMOVE CYLINDER HEAD GASKET RH
    1. Remove the cylinder head gasket RH.
  8. REMOVE CYLINDER HEAD SUB-ASSEMBLY LH
    1. Uniformly loosen and remove the 2 cylinder head set bolts in several steps in the order shown in the illustration.
      Fig 2: Loosening Sequence Of 2 Cylinder Head Set Bolts
      GTY142462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a 10 mm bi-hexagon wrench, uniformly loosen the 8 bolts in the order shown in the illustration. Remove the 8 cylinder head set bolts and plate washers.

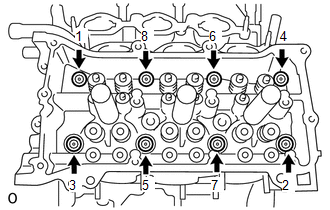

      Fig 3: Loosening Sequence Of 8 Cylinder Head Set Bolts
      GTY433358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Be careful not to drop plate washers into the cylinder head sub-assembly LH.
      • Warpage or cracking of the cylinder head sub-assembly LH may result from removing bolts in the incorrect order.

      HINT:

      Arrange the removed parts in the correct order.

    3. Remove the cylinder head sub-assembly LH.
  9. REMOVE CYLINDER HEAD GASKET LH
    1. Remove the cylinder head gasket LH.
