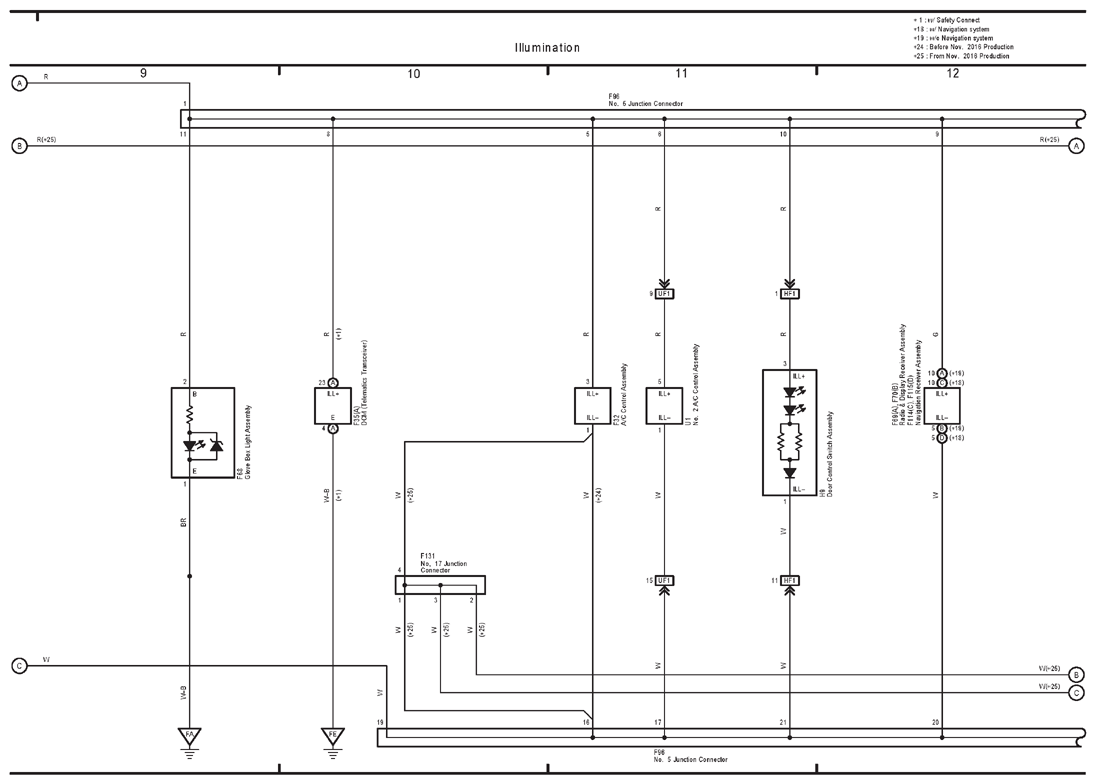

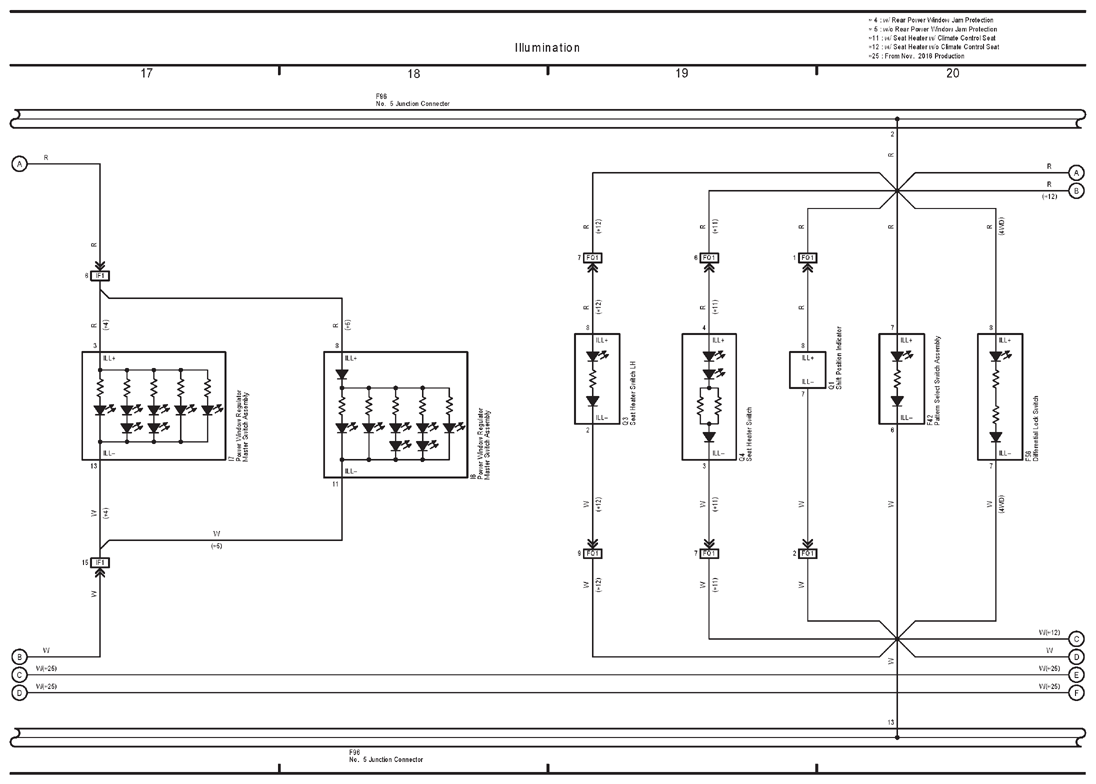

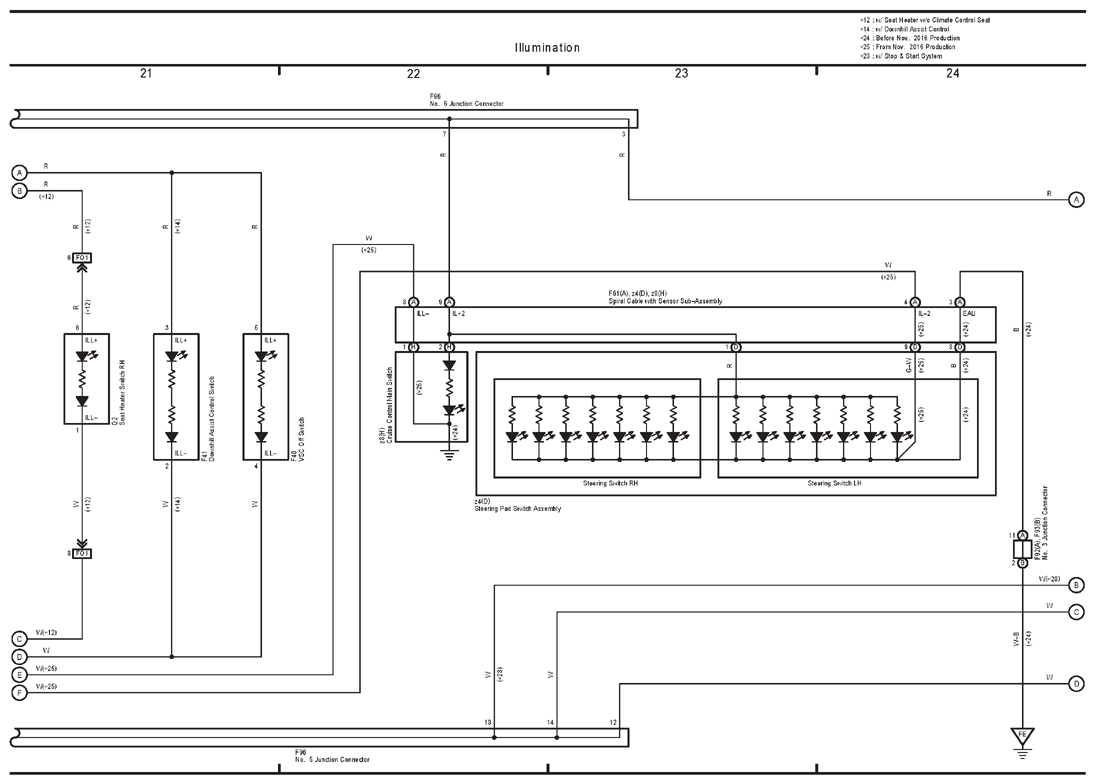

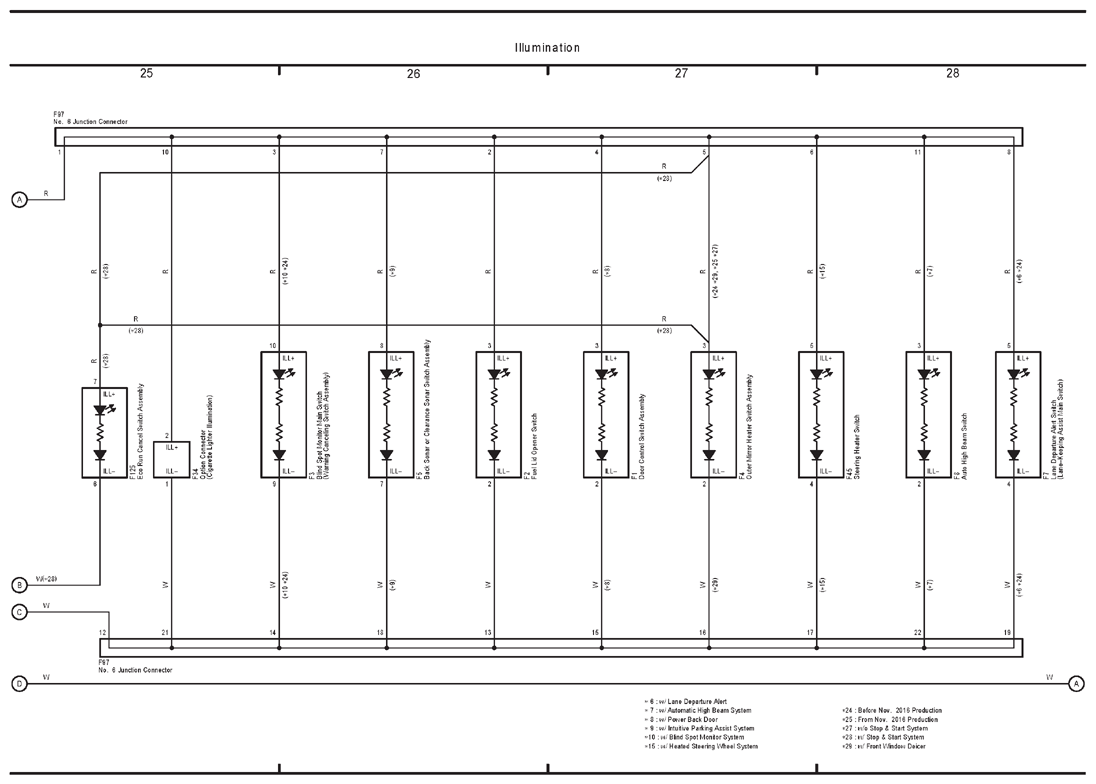

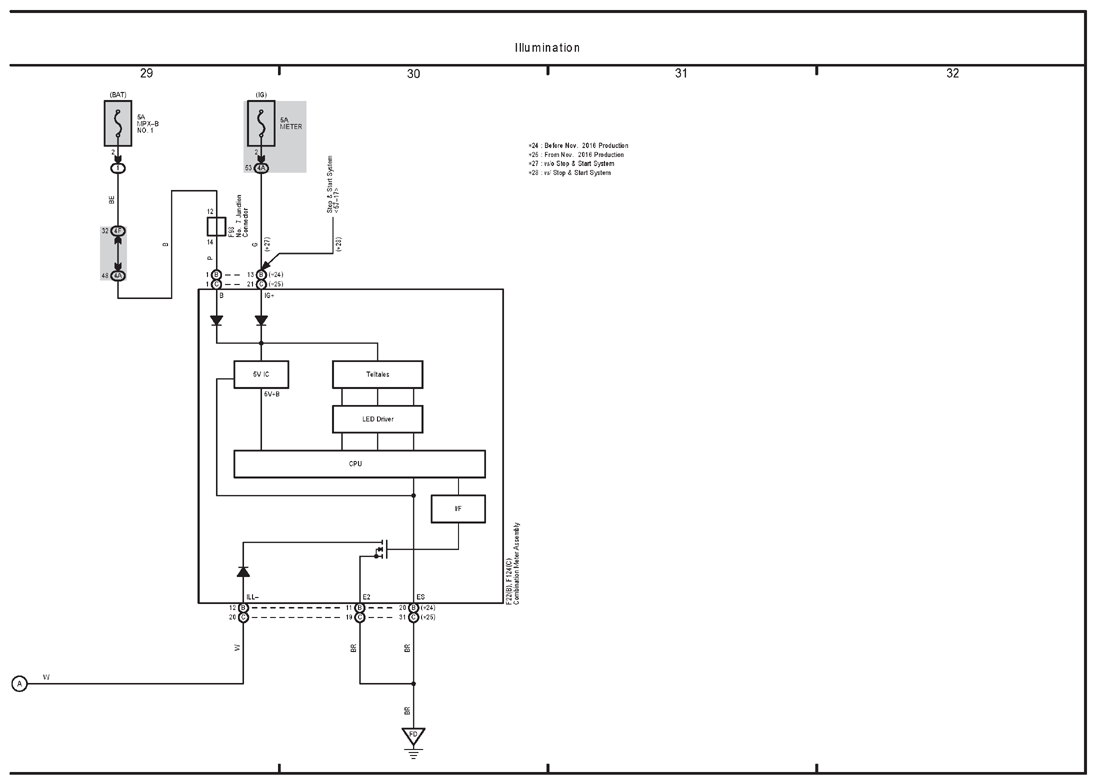

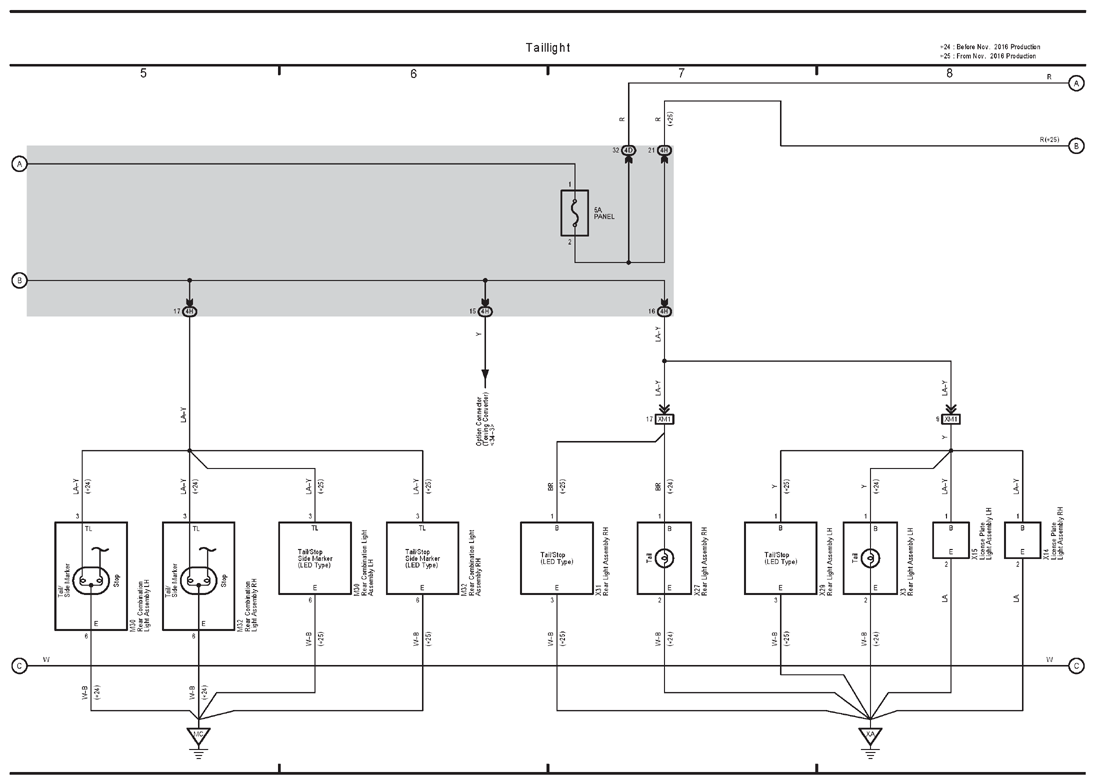

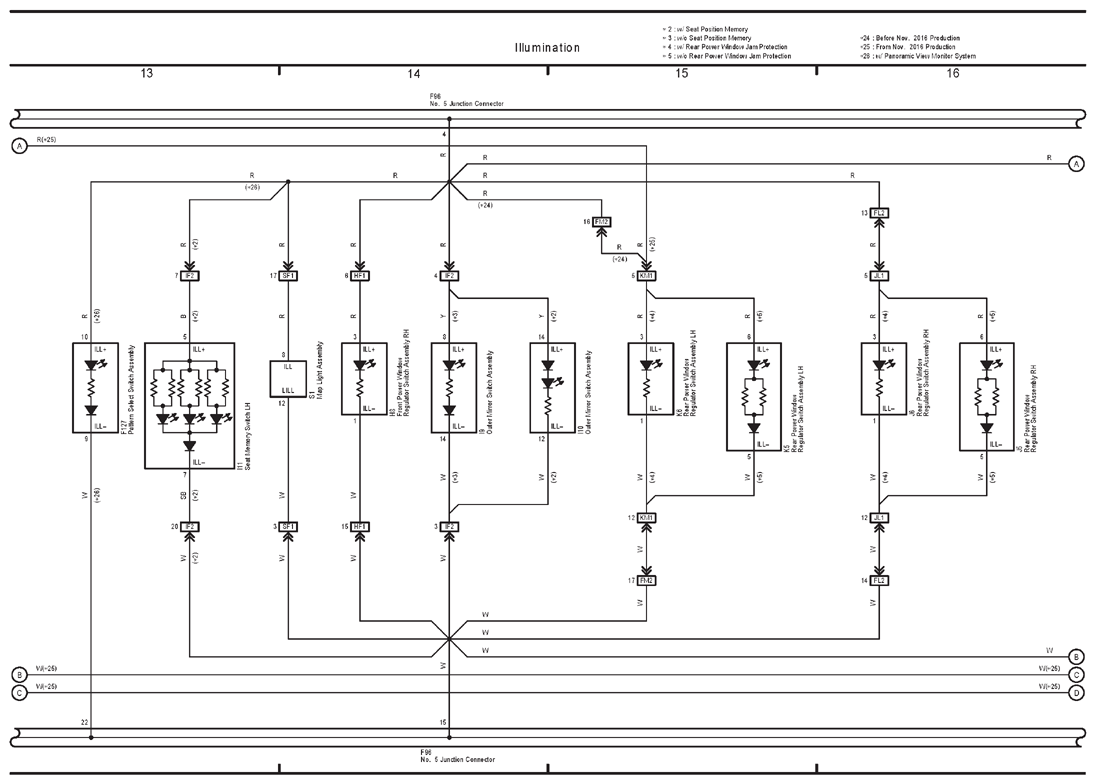

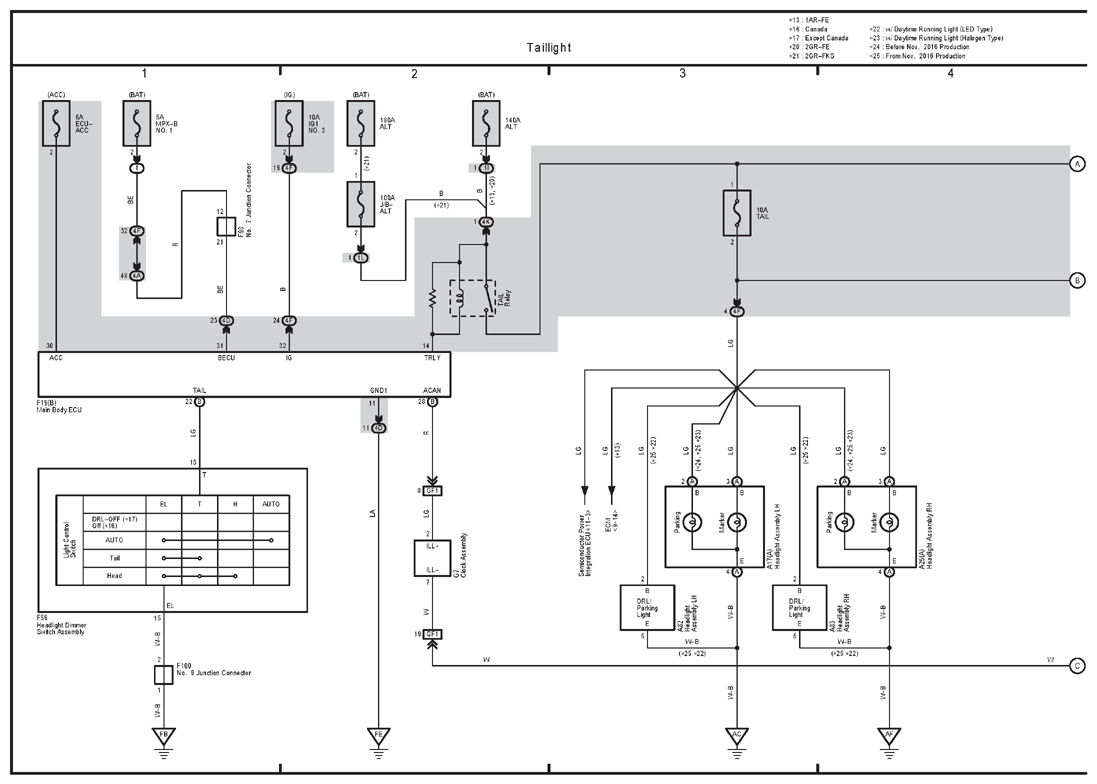

Home >> Toyota >> 2017 >> Highlander LE Plus, AWD >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> OEM Overall Electrical Wiring Diagram (Except Hybrid) >> Overall Electrical Wiring Diagram >> Taillight, Illumination
