Replacement [12/2013 - ]: Procedure

Refer to REMOVAL [12/2013 - 11/2016] , or refer to REMOVAL [11/2016 - ]

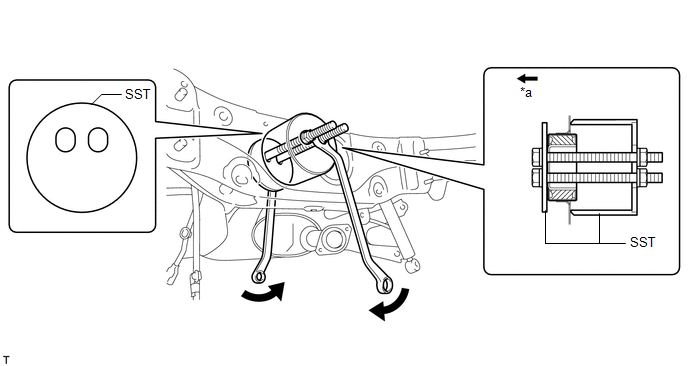

1. Using SST, remove the rear No. 2 differential mount cushion.
   • SST: 09570-48010

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Front of the Vehicle

   -

   -

   NOTE:

   • Before using SST, apply grease to the SST bolts.
   • Be sure to use the correct combination of SST.
   • Be sure to use the correct direction of SST.
   • Make sure that SST contacts the entire circumference of the rear No. 2 differential mount cushion.
   • Do not tilt the bolts of SST.
   • Tighten the 2 bolts of SST so that they enter the 2 holes of the rear No. 2 differential mount cushion by an equal amount.

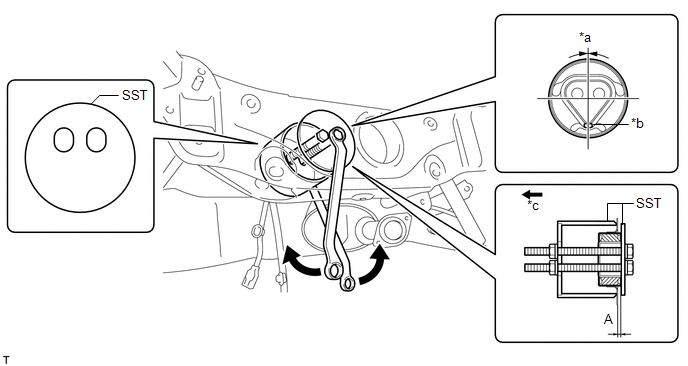

1. Using SST, install a new rear No. 2 differential mount cushion.
   • SST: 09570-48010

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	0° +/- 3°	*b	Protrusion
   *c	Front of the Vehicle	-	-

   Standard Distance (A)

   9.8 to 10.8 mm (0.386 to 0.425 in.)

   NOTE:

   • Make sure that the rear No. 2 differential mount cushion is aligned within 3° from the center.
   • Install the rear No. 2 differential mount cushion so that the protrusion is positioned as shown in the illustration.
   • Temporarily install the rear No. 2 differential mount cushion to the rear suspension member sub-assembly in order to prevent it from tilting, and then install SST.
   • Before using SST, apply grease to the SST bolt.
   • Be sure to use the correct combination of SST.
   • Be sure to use the correct direction of SST.
   • Make sure that SST contacts the entire circumference of the rear No. 2 differential mount cushion.
   • Do not tilt the bolts of SST.
   • Tighten the 2 bolts of SST so that they enter the 2 holes of the rear No. 2 differential mount cushion by an equal amount.

See step  4 , or see step  4
