Disassembly [12/2013 - ]: Procedure

  1. REMOVE REAR DISC BRAKE PISTON
    1. GTY454395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Cloth

      Place a piece of cloth between the rear disc brake piston and rear disc brake cylinder.

    2. Apply compressed air to remove the rear disc brake piston from the rear disc brake cylinder.
      WARNING:

      Do not place your fingers in front of the rear disc brake piston when using compressed air.

      NOTE:

      Do not allow any brake fluid to spatter.

  2. REMOVE CYLINDER BOOT
    1. Using a screwdriver with its tip wrapped with protective tape, remove the cylinder boot from the rear disc brake cylinder.

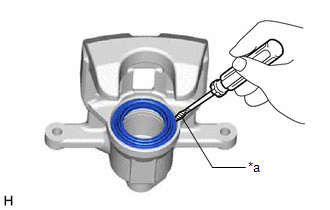

      GTY450507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      NOTE:

      Be careful not to damage the rear disc brake cylinder.

  3. REMOVE PISTON SEAL

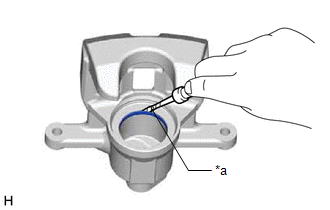

    1. GTY427329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape

      Using a screwdriver with its tip wrapped with protective tape, remove the piston seal from the rear disc brake cylinder.

      NOTE:

      Do not damage the inner surface or piston seal groove of the rear disc brake cylinder.

  4. REMOVE REAR DISC BRAKE BLEEDER PLUG CAP
  5. REMOVE REAR DISC BRAKE BLEEDER PLUG
