Removal [12/2013 - ]: Procedure

  1. REMOVE REAR WHEEL
  2. DRAIN BRAKE FLUID
    NOTE:

    If brake fluid leaks onto any painted surface, immediately wash it off.

  3. REMOVE REAR FLEXIBLE HOSE
    1. Remove the union bolt and gasket, and disconnect the rear flexible hose from the rear disc brake cylinder assembly.
      GTY426036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

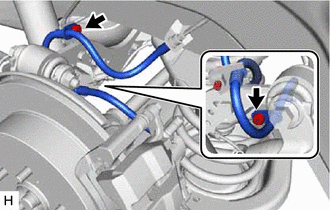

    2. Remove the 2 bolts and separate the rear flexible hose from the flexible hose bracket.
      GTY450887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

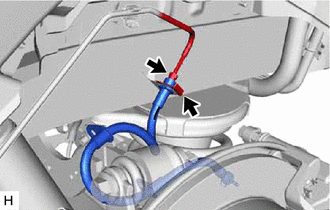

    3. Using a union nut wrench, disconnect the brake line while holding the rear flexible hose with a wrench.
      NOTE:
      • Do not kink or damage the brake line.
      • Do not allow any foreign matter such as dirt or dust to enter the brake line from the connecting parts.
      GTY426034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the clip and rear flexible hose.
  4. REMOVE FLEXIBLE HOSE BRACKET

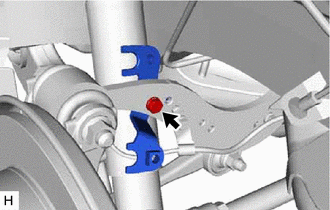

    1. Remove the bolt and flexible hose bracket from the rear upper control arm assembly.
      GTY426035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
