Installation [12/2013 - ]: Procedure

1. Install the flexible hose bracket to the rear upper control arm assembly with the bolt.

   Torque: 18.8 N*m (192 kgf*cm, 14 ft.*lbf)

1. Install a new clip to the rear flexible hose.
   NOTE:

   • Install the clip as far as it will go.

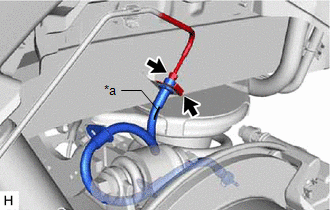

   • When installing the rear flexible hose, face the identification mark to the outside of the vehicle.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Identification Mark

2. Using a union nut wrench, connect the brake line to the rear flexible hose while holding the rear flexible hose with a wrench.

   Torque: 15.2 N*m (155 kgf*cm, 11 ft.*lbf)

   NOTE:

   • Do not kink or damage the brake line.
   • Do not allow any foreign matter such as dirt or dust to enter the brake line from the connecting parts.
   • Use the formula to calculate special torque values for situations where the union nut wrench is combined with a torque wrench.

     Refer to PRECAUTION [12/2013 - 11/2016]

     Refer to PRECAUTION [11/2016 - ]

3. Install the rear flexible hose to the flexible hose bracket with the 2 bolts.

   Torque: 18.8 N*m (192 kgf*cm, 14 ft.*lbf)

4. Connect the rear flexible hose to the rear disc brake cylinder assembly with a new union bolt and a new gasket.

   Torque: 22 N*m (224 kgf*cm, 16 ft.*lbf)

   NOTE:

   Install the rear flexible hose lock securely into the lock hole in the rear disc brake cylinder assembly.

Refer to REPLACEMENT [12/2013 - ]

Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)
