Installation [11/2016 - ]: Procedure

  1. INSTALL CHECK VALVE GROMMET
    1. Install a new check valve grommet to the brake booster assembly.
  2. INSTALL VACUUM WARNING SWITCH ASSEMBLY

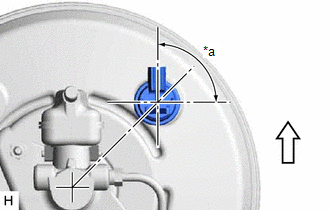

    1. Install the vacuum warning switch assembly to the brake booster assembly as shown in the illustration.
      GTY690756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 90° +/- 20°
      Up
    2. Connect the connector to the vacuum warning switch assembly.
  3. INSTALL OUTER COWL TOP PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10

  4. INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

    Refer to PROCEDURE - Step 3
