Components [11/2016 - ]: Illustration

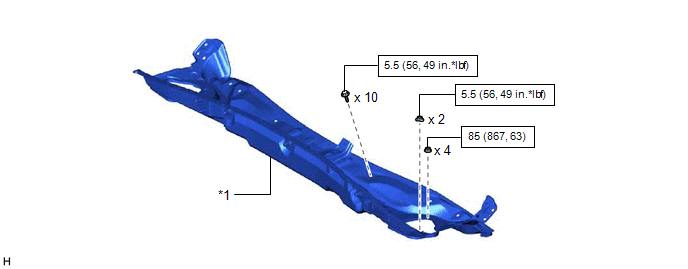

Fig 1: Vacuum Warning Switch Replacement Components With Torque Specifications (1 Of 2)
GTY721061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 OUTER COWL TOP PANEL SUB-ASSEMBLY - -
N*m (kgf*cm, ft.*lbf): Specified torque - -

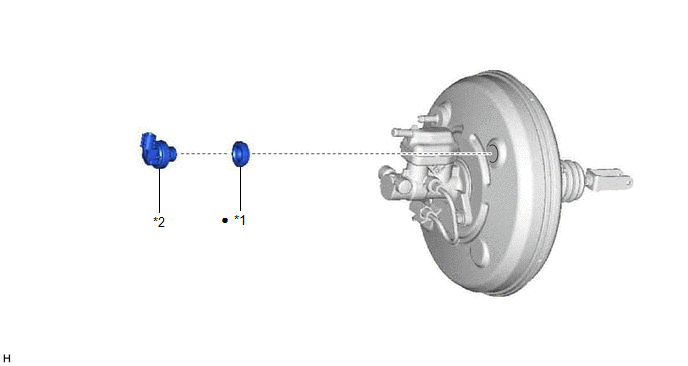

Fig 1: Vacuum Warning Switch Replacement Components (2 Of 2)
GTY740143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 CHECK VALVE GROMMET *2 VACUUM WARNING SWITCH ASSEMBLY
• Non-reusable part - -
