Removal [12/2013 - ]: Procedure

  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 24 , or refer to PROCEDURE - Step 24

  2. REMOVE NO. 1 VACUUM SWITCHING VALVE ASSEMBLY
    1. Disconnect the connector.
      GTY442745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Air Hose
      *2 No. 2 Vacuum Hose Assembly
    2. Slide the 2 clips and disconnect the No. 1 air hose and No. 2 vacuum hose assembly.
    3. Remove the bolt and No. 1 vacuum switching valve assembly.
  3. REMOVE NO. 1 VACUUM SWITCHING VALVE

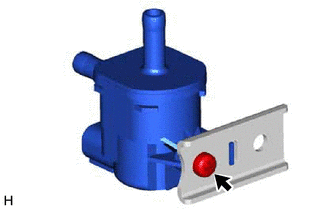

    1. Remove the screw to remove the No. 1 vacuum switching valve from the bracket.
      GTY429689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
