Installation [12/2013 - ]: Procedure

1. Install the No. 1 vacuum switching valve to the bracket with the screw.

   Torque: 3.4 N*m (35 kgf*cm, 30 in.*lbf)

1. Install the No. 1 vacuum switching valve assembly with the bolt.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

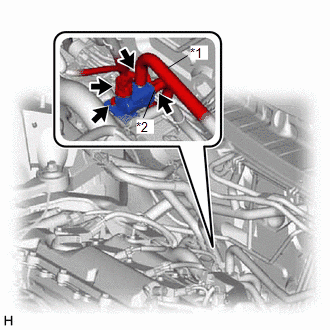

   *1	No. 1 Air Hose
   *2	No. 2 Vacuum Hose Assembly

   Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

2. Connect the No. 1 air hose and No. 2 vacuum hose assembly to the No. 1 vacuum switching valve assembly, and slide the 2 clips to secure them.
3. Connect the connector.

Refer to PROCEDURE - Step 67 , or refer to PROCEDURE - Step 67
