Removal [11/2016 - ]: Procedure
- PRECAUTION NOTE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.
Refer to PRECAUTION [11/2016 - ]
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [11/2016 - ]
- REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY
Refer to REMOVAL [11/2016 - ]
- REMOVE FRONT WHEEL LH
- REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
Refer to REMOVAL [12/2013 - ]
- REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 4
- REMOVE RADIATOR SIDE DEFLECTOR SEAL LH
Refer to PROCEDURE - Step 1
- REMOVE RADIATOR SIDE SEAL RH
Refer to PROCEDURE - Step 2
- REMOVE COOL AIR INTAKE DUCT SEAL
Refer to PROCEDURE - Step 3
- REMOVE V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 25
- REMOVE INLET AIR CLEANER ASSEMBLY
Refer to PROCEDURE - Step 27
- REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY
Refer to PROCEDURE - Step 4
- REMOVE AIR CLEANER CASE SUB-ASSEMBLY
Refer to PROCEDURE - Step 5
- SEPARATE TRANSMISSION CONTROL CABLE ASSEMBLY
- Remove the clip from the transmission control shaft lever as shown in the illustration.
- Using a screwdriver, disengage the 4 claws and disconnect the transmission control cable assembly with the clip from the No. 1 transmission control cable bracket.
- Using a screwdriver, disengage the 2 claws and disconnect the clip from the transmission control cable assembly.
- Remove the clip from the transmission control shaft lever as shown in the illustration.
- DISCONNECT AIR TUBE
- DISCONNECT VENTILATION HOSE
- DISCONNECT HEATER WATER HOSE
- REMOVE NO. 2 ENGINE UNDER COVER
Refer to PROCEDURE - Step 9

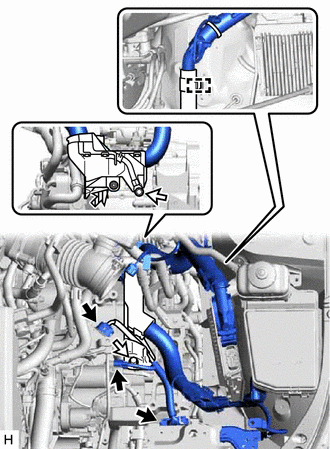

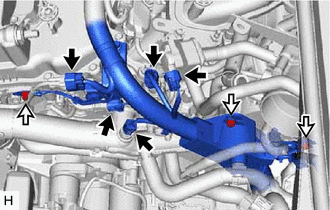

- SEPARATE ENGINE WIRE
- Disconnect the 2 connectors.
- Disengage the clamp.
- Disconnect the 11 connectors.
Connector Bolt - Disengage the claw.
- Remove the 2 bolts.
- Disconnect the 5 connectors.
Connector Bolt - Remove the 3 bolts.
- Disengage the clamp.
Connector Bolt Nut - Disconnect the 3 connectors.
- Remove the 2 bolts and nut to separate the engine wire.
- Disconnect the 2 connectors.
- REMOVE VACUUM PUMP ASSEMBLY
