On-Vehicle Inspection [11/2016 - ]: Procedure

  1. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

    Refer to REMOVAL [12/2013 - ]

  2. REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  3. OPERATION CHECK
    1. Slide the clip and disconnect the air tube from the vacuum pump assembly.

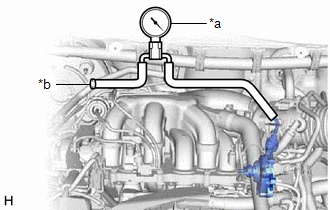

    2. Connect the hose of the vacuum gauge to the vacuum pump assembly.
      GTY668241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Vacuum Gauge
      *b Plug
    3. Start the engine and warm it up for more than 2 minutes.
    4. With the engine idling, check the vacuum of the vacuum pump assembly.

      Standard Pressure

      More than 86.7 kPa (650 mmHg, 25.6 in.Hg)

      HINT:

      If the result is not as specified, replace the vacuum pump assembly.

    5. Remove the vacuum gauge from the vacuum pump assembly.
    6. Connect the air tube to the vacuum pump assembly, and slide the clip to secure it.
  4. INSTALL OUTER COWL TOP PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10

  5. INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

    Refer to PROCEDURE - Step 3
