Removal [12/2013 - ]: Procedure

  1. REMOVE BRAKE BOOSTER VACUUM EJECTOR
    1. Remove the 2 nuts and separate the brake booster vacuum ejector from the outer cowl top panel sub-assembly.
      GTY429621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

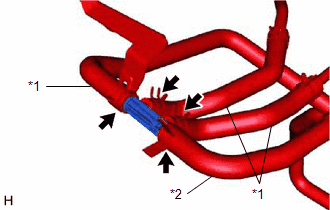

    2. Slide the 4 clips and disconnect the 3 union to connector tube hoses and No. 2 vacuum hose assembly from the brake booster vacuum ejector to remove it.
      GTY450103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Union to Connector Tube Hose
      *2 No. 2 Vacuum Hose Assembly
