Installation [12/2013 - ]: Procedure
- INSTALL BRAKE BOOSTER VACUUM EJECTOR
- Connect the 3 union to connector tube hoses and No. 2 vacuum hose assembly to the brake booster vacuum ejector to install it, and slide the 4 clips to secure them.

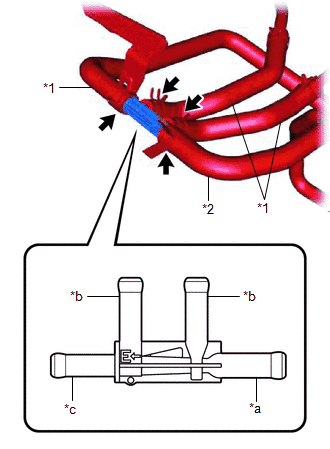

*1 Union to Connector Tube Hose *2 No. 2 Vacuum Hose Assembly *a from No. 1 Vacuum Switching Valve (Air Cleaner Hose) *b from Brake Booster Assembly *c to Intake Manifold NOTE:Be sure to install the brake booster vacuum ejector in the correct direction.
- Install the brake booster vacuum ejector to the outer cowl top panel sub-assembly with the 2 nuts.
Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)
- Connect the 3 union to connector tube hoses and No. 2 vacuum hose assembly to the brake booster vacuum ejector to install it, and slide the 4 clips to secure them.
